Radiography testing in NDT uses either x-rays or gamma rays to examine the internal structure of manufactured components, identifying any flaws or defects. During the radiography testing procedure, the test part will attenuate the penetrating radiation through interaction processes involving scattering and absorption.
The two radiography source types available, X-ray and gamma-ray, have varying energy levels that allow for different levels of penetration into the test-part. These radiation sources use higher energy levels, i.e., shorter wavelength versions of the electromagnetic waves. Because of the radioactivity involved in radiography testing, it is of paramount importance to ensure that all the radiation safety protocols are strictly adhered to during operation.
What is the Process of Radiography Testing?
Radiography Testing procedures are used to detect any flaws or defects in the core structure of any machine or its components. The radiography testing process involves exposing the material to radiation from the generator and capturing the image on a detector or film. This resulting image can then be analysed for any defects or abnormalities in the material. Radiography inspection steps are as follows

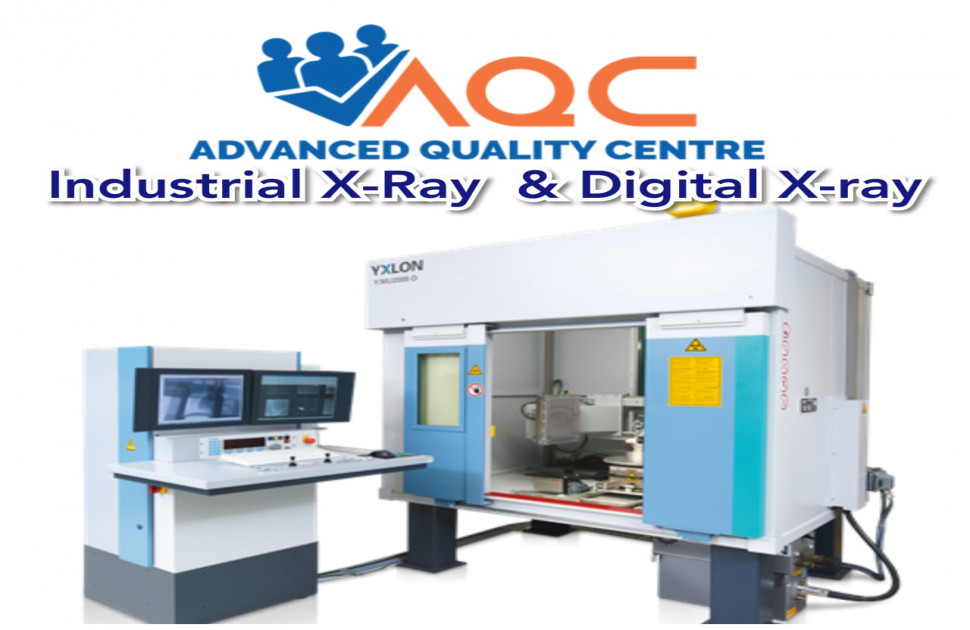

Image Credit: India Mart
1. Preparation and Setup
- The object or material to be tested is cleaned and positioned for inspection.
- The correct exposure settings are determined based on factors like material thickness, density, and the type of radiation being used.
- Safety measures are put in place to protect personnel from radiation exposure.
2. Radiation Exposure
- The radiation source is activated, and the rays are directed toward the object.
- The radiation passes through the material, and any variations in density or thickness are captured on the other side by a detector or film.
- Areas with defects, such as cracks, voids, or inclusions, will appear as darker or lighter spots on the image due to differences in radiation absorption.
3. Image Capture and Processing
- The detector or film captures the radiography image, which is then developed and processed.
- A Trained Technician or automated software analyses the resulting image, also known as a radiograph, to find and assess any anomalies or flaws.
- Based on the findings, a report is generated detailing the quality of the material and any issues that need to be addressed.
- Radiography testing is widely used in industries like aerospace, automotive, construction, and manufacturing to ensure the integrity and safety of critical components and structures.
What are the Applications of Radiography Testing?
Radiography testing is a crucial Non-destructive Testing Method used across various industries to ensure the safety and quality of materials and components. By allowing inspection without causing damage, RT helps detect internal defects, irregularities, and structural issues. Here are real-world examples of how this technique is applied across different sectors.
1. Aerospace Industries
Example: RT is used to inspect aircraft components such as wings, engines, landing gear, and turbine blades. Detecting cracks, corrosion, and weld defects ensures the safety of aircraft operations.
Real-World Scenario: Regular RT inspection of jet engine turbine blades prevents catastrophic failures by identifying fatigue cracks that may not be visible externally.
2. Military Defence
Example: RT is widely used to inspect the integrity of military equipment like tanks, missiles, and ammunition.
Real-World Scenario: Radiography testing is used to ensure the structural integrity of missile casings, which must be defect-free to perform reliably under extreme conditions.
3. Offshore Industries
Example: RT is vital in inspecting pipelines, Subsea Equipment, and structural elements of offshore oil rigs and platforms.
Real-World Scenario: In offshore drilling, RT is used to examine underwater pipelines for corrosion, cracks, and weld quality to prevent leaks and environmental hazards.
4. Marine Industries
Example: RT helps inspect ship hulls, boilers, and propellers to detect internal defects that could lead to accidents or breakdowns at sea.
Real-World Scenario: During ship maintenance, RT is used to check for hidden cracks in the ship’s propeller shafts, ensuring they do not fail during voyages.
5. Power-Gen Industries
Example: RT is utilized to inspect critical components of power generation equipment, such as turbines, boilers, and Pressure Vessels.
Real-World Scenario: In nuclear power plants, RT checks the integrity of fuel rods and welds in containment vessels, ensuring there are no defects that could lead to radiation leaks.
6. Petrochemical Industries
Example: RT is essential for inspecting pipelines, storage tanks, and refineries to detect flaws and prevent hazardous leaks.
Real-World Scenario: During the construction and maintenance of refineries, RT helps in inspecting welds to ensure they are free from porosity, cracks, and other flaws.
7. Waste Management
Example: RT is used to inspect containers used for storing and transporting hazardous waste, ensuring they do not have cracks or leaks.
Real-World Scenario: In nuclear waste management, RT ensures that storage containers are structurally sound and leak-proof, minimising the risk of environmental contamination.
8. Automotive Industries
Example: RT is used to inspect engine blocks, gears, and brake components to ensure their reliability and safety.
Real-World Scenario: Automotive Manufacturers use RT to check castings for internal defects, such as voids or inclusions, that could affect the performance of the final product.
9. Manufacturing Industries
Example: RT is applied to inspect metal castings, weldments, and composite structures during manufacturing to detect internal flaws.
Real-World Scenario: In the production of heavy machinery, RT is used to inspect welded joints to ensure they can withstand high stresses during operation.
10. Transport Industries
Example: RT helps ensure the safety and reliability of railway tracks, bridges, and tunnels by detecting internal flaws in metals and welded joints.
Real-World Scenario: Railways use RT to check the integrity of wheel axles and rail joints, preventing accidents caused by undetected cracks or material fatigue.
Key Takeaways
- Radiography testing remains an ideal tool in various industries, offering a safe way to inspect materials and ensure safety.
- As technology continues to advance, digital methods are becoming more common, providing quicker and more precise results.
- However, traditional radiography still has its place, especially for certain types of materials and regulatory environments.
- With its wide range of applications, radiography testing will continue to play a critical role in quality control and safety assurance across many sectors.
- Digital radiography is becoming more prevalent as industries seek faster, more environmentally friendly alternatives to conventional methods.
FAQs
1. What is the difference between X-ray and gamma-ray radiography?
A: X-ray radiography uses X-rays, suitable for thinner materials, while gamma-ray radiography uses gamma radiation, ideal for thicker and denser materials.
2. Is radiography testing safe for the operators?
A: Yes, but only when strict safety protocols are followed, such as using protective equipment and minimising exposure to radiation.
3. Why is radiography testing considered non-destructive?
A: Radiography testing doesn't harm or alter the material being tested, allowing it to be used in critical applications without damaging the component.
4. Can digital radiography replace conventional radiography?
A: Digital radiography is becoming more popular due to its speed and convenience, but conventional methods are still preferred in certain situations.
