Non-destructive testing plays a vital role in most industries. NDT in the oil and gas industry is critical for both the integrity of equipment and the safety of petroleum refining and extraction operations. Keeping potentially hazardous chemicals and fluids safely contained within pipes and pressure vessels means careful inspection of welds and metals for flaws and corrosion using ultrasonic and eddy current NDT testing solutions.
It plays a role in many parts of the oil and gas industry. Running a safe, efficient, and profitable petroleum extraction operation on land or offshore requires effective ultrasonic and eddy current oil and gas upstream solutions.
Understanding NDT in the Oil and Gas Industry
NDT technologies are being improved upon all the time with innovations in instrumentation, probes, and software. Keeping abreast of these innovations can help oil and gas producers in all phases of the production cycle improve the accuracy and speed of their NDT inspection of welds, pipes, and pressure and storage vessels. Improving production efficiency while ensuring the safety and reliability of their operations.
Developments in technology are opening up new NDT techniques for both ultrasonic and eddy current NDT in the Oil and Gas Industry. New instruments and improvements to existing instruments are being developed. These innovative solutions allow more accurate inspection of critical oil and gas infrastructure with a greater probability of the detection of discontinuities in welds and materials.
Key NDT Methods Used in the Oil and Gas Industry
NDT plays a crucial role in ensuring quality assurance and asset integrity management in the Oil & Gas industry. It enables the identification and evaluation of defects, corrosion, and structural irregularities in equipment, pipelines, and infrastructure, thereby reducing the risks associated with catastrophic failures and environmental hazards. Here are the most commonly used NDT methods in oil and gas industry.
Ultrasonic Testing (UT):
Utilises high-frequency sound waves to assess material thickness and integrity, particularly effective for detecting internal flaws and corrosion in pipelines, pressure vessels, and welds.
Radiographic Testing (RT):
Involves the use of X-rays or gamma rays to examine internal component structures, providing detailed images for defect detection in welds, pipelines, and critical infrastructure.
Magnetic Particle Testing (MPT):
Detects surface and near-surface defects in ferromagnetic materials using magnetic fields and visible or fluorescent particles, commonly applied in inspecting welds, valves, and pipelines.
Also Read, How To Do Preventative Maintenance For Magnetic Particle Equipment
Dye Penetrant Testing (DPT):
Dye Penetrant Testing identifies surface-breaking defects by applying liquid penetrants that seep into flaws, highlighted by developers, suitable for inspecting welds, castings, and machined components.
Visual Inspection (VI):
Involves direct observation to detect surface irregularities, corrosion, and visible defects, a fundamental method complementing other NDT techniques.
Applications of NDT in the Oil and Gas Industry
Pipeline Inspection: Ensuring pipeline integrity to prevent leaks, corrosion, and ruptures.
Pressure Vessel Testing: Assessing vessel structural integrity under high-pressure conditions to prevent failures.
Weld Inspection: Verifying weld quality in critical components to maintain structural integrity.
Storage Tank Evaluation: Detecting corrosion and defects in tanks to prevent environmental contamination and product loss.
Also Explore the Diverse Job Opportunities in the Oil and Gas Industry
Benefits of NDT in the Oil and Gas Industry
Enhanced Safety: Early defect detection minimises equipment failure risks, safeguarding personnel and the environment.
Cost Savings: Preventive maintenance and timely repairs based on NDT findings reduce downtime and costly replacements.
Regulatory Compliance: NDT assists Oil & Gas companies in meeting regulatory requirements for asset integrity and safety standards.
Increased Efficiency: Regular NDT inspections optimise asset performance, extending equipment lifespan and enhancing operational efficiency.
Oil and Gas Standards for (DR) NDT
In the oil and gas industry, safety, quality, and compliance are paramount. To ensure the integrity of equipment and infrastructure, several industry standards govern the use of NDT techniques. These standards, established by organizations such as the American Petroleum Institute (API), provide guidelines and requirements for conducting inspections and assessments. Adherence to these standards is essential for maintaining operational efficiency and preventing potential hazards in oil and gas operations.
API 653: Tank Inspection, Repair, Alteration, and Reconstruction:
API 653 is a standard developed by the American Petroleum Institute that outlines the requirements for the inspection, repair, alteration, and reconstruction of aboveground Storage Tanks used in the oil and gas industry. This standard covers various aspects of tank integrity, including corrosion prevention, leak detection, and structural stability. NDT professionals and technicians play a crucial role in implementing API 653 guidelines by conducting inspections using techniques such as UT, MPT, and visual inspection.
API RP 580: Risk-Based Inspection:
API RP 580 provides guidelines for implementing risk-based inspection (RBI) programs in the oil and gas industry. RBI is a proactive approach to asset management that prioritizes inspection activities based on risk assessment. This standard outlines the principles and methodologies for identifying, evaluating, and mitigating risks associated with equipment and infrastructure. NDT professionals utilize RBI techniques to optimize inspection schedules, allocate resources effectively, and ensure the integrity of critical components.
API 510: Pressure Vessel Inspection Code:
API 510 is a code developed by the American Petroleum Institute for the inspection, repair, alteration, and rerating of pressure vessels used in the oil and gas industry. This code sets forth requirements for maintaining the structural integrity and safety of pressure vessels under various operating conditions.NDT technicians perform inspections on pressure vessels using techniques such as radiographic testing, liquid penetrant testing, and eddy current testing (ECT) to detect defects and ensure compliance with API 510 standards.
API 570: Piping Inspection Code:
API 570 is a code developed by the American Petroleum Institute for the inspection, repair, alteration, and rerating of piping systems used in the oil and gas industry. This code provides guidelines for assessing the integrity and reliability of piping infrastructure, including process piping, pipelines, and associated components. NDT professionals employ techniques such as ultrasonic testing, radiographic testing, and magnetic particle testing to evaluate the condition of piping systems and identify potential defects or vulnerabilities.
API RP 572: Inspection of Pressure Vessels:
API RP 572 provides recommendations for the inspection of Pressure Vessels used in the oil and gas industry. This recommended practice covers various aspects of pressure vessel inspection, including inspection intervals, methods, and procedures.
API RP 577: Welding, Inspection, and Metallurgy:
API RP 577 provides recommendations for welding, inspection, and metallurgical practices in the oil and gas industry. This recommended practice covers various aspects of welding and fabrication, including weld quality, inspection techniques, and materials selection.
Adherence to oil and gas standards for (DR) NDT is essential for ensuring the safety, reliability, and integrity of equipment and infrastructure in the oil and gas industry. NDT professionals and technicians play a vital role in implementing these standards by conducting inspections, assessments, and evaluations using advanced NDT methods and techniques.

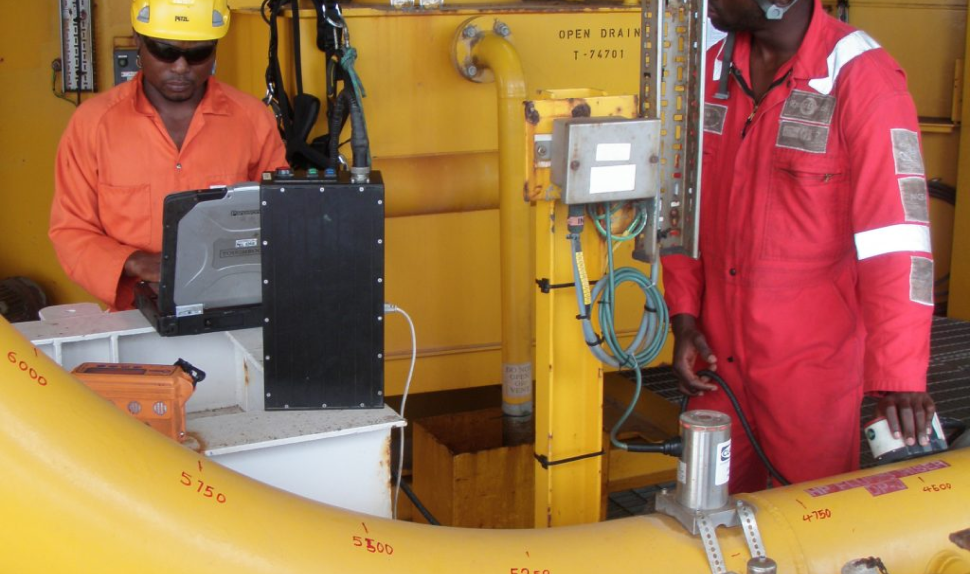

How DDA Panels, CR, and X-Ray Film Can Help?
Digital Detector Arrays (DDA) panels, Computed Radiography (CR), and X-ray film are essential tools in oil and gas NDT inspections. DDA panels offer high-resolution imaging and faster data acquisition, improving efficiency and accuracy. CR technology enables the digitization of X-ray images for immediate analysis and storage, reducing processing time and enhancing data management. X-ray film remains a reliable option for NDT applications, providing detailed images for defect detection and analysis.

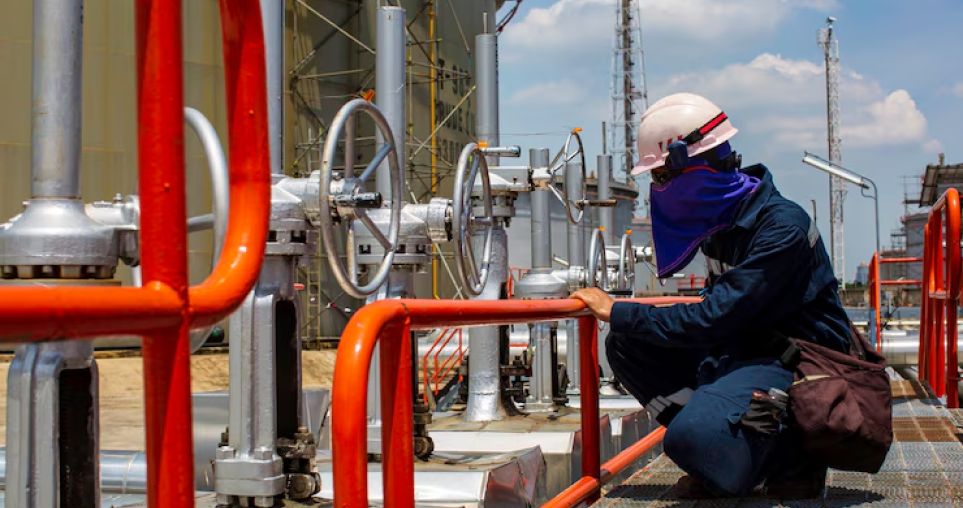

Challenges of NDT for the Oil and Gas Industry
Despite its benefits, NDT in the oil and gas industry faces several challenges. These include:
Harsh Environments:
NDT inspections often occur in challenging environments such as offshore platforms, refineries, and pipelines, requiring specialized equipment and safety measures.
Access Restrictions:
Limited access to certain areas of equipment and infrastructure can hinder thorough inspections, leading to potential missed defects.
Data Interpretation:
Interpreting NDT results accurately requires expertise and experience, particularly in complex structures and components.
Cost Considerations:
NDT can be costly, especially when considering equipment, training, and downtime for inspections, necessitating careful budgeting and planning. By addressing these challenges and adhering to industry standards, NDT professionals ensure the safety, reliability, and efficiency of oil and gas operations.
By utilising advanced NDT techniques, oil and gas companies can effectively manage asset integrity, minimise risks, and maintain compliance with regulatory standards, thus contributing to the sustainable and responsible development of energy resources.
Key Takeaways
- NDT techniques such as UT and ECT play a crucial role in detecting defects, mitigating corrosion, and ensuring the safety of equipment and infrastructure in the oil and gas industry.
- Compliance with industry standards such as API 653, API RP 580, and API 510 is essential for maintaining operational efficiency and preventing potential hazards.
- Ongoing advancements in technology and instrumentation enhance the accuracy and efficiency of NDT inspections, contributing to the overall reliability of petroleum operations.
