Ensuring Reliability and Sustainability in Wind Turbine Inspection

Table of Content

• Components and Operation of Wind Turbines
• Flaws in Wind Turbines
• NDT Techniques for Wind Turbine Inspection
• Future Advancements and Innovations
• Key Takeaways
• FAQs

The earliest record of harnessing Wind Energy dates back to 5000 BC Egypt where wind was used to power sailboats on the Nile. Scottish Professor, Dr James Blyth built the first wind turbine to generate electricity. From then, the wind industry has grown ten-fold, with Denmark, through their large-scale wind turbine installations, becoming an industry leader in the 1980s.

The global installed wind power capacity has grown exponentially since the 1990s. In 2000, the global installed capacity was approximately 17GW. By 2010, this number had increased to around 197GW. The global installed capacity in 2023 was approximately 1,021 GW, with continuous growth expected. (Lucía Fernández, 2024). The Compound Annual Growth Rate (CAGR) for onshore wind from 2024 to 2028 is projected to be 6.6%. Yearly additions are expected to average 130 GW, totalling 652 GW by 2028. (Joshi, 2024)

Components and Operation of Wind Turbines

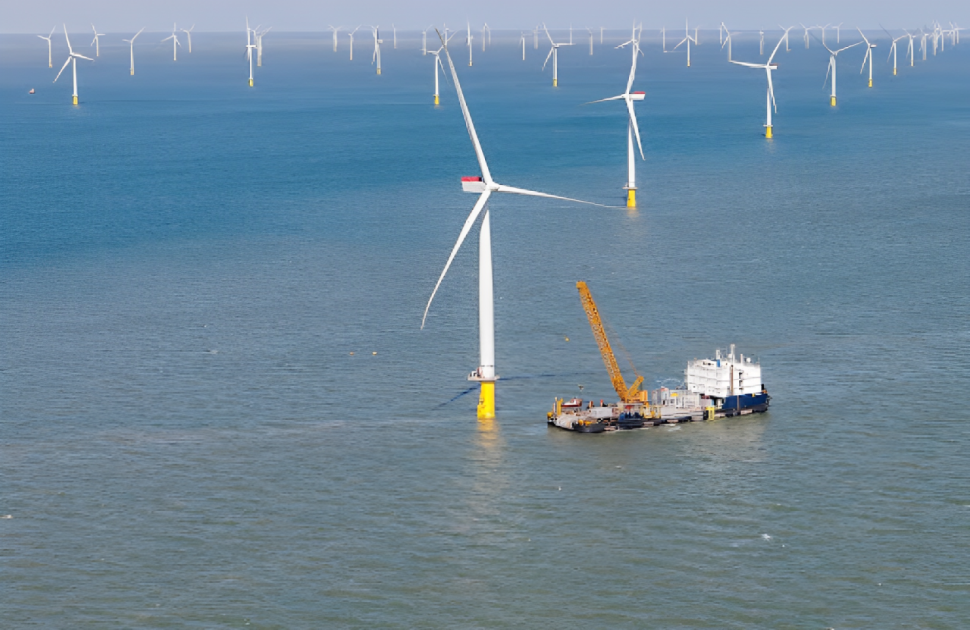

Wind energy is a clean, renewable source of power that significantly reduces greenhouse gas emissions compared to fossil fuels. Offshore wind farms have become increasingly prevalent, with the World's largest offshore wind farm, Hornsea One in the UK, having a capacity of 1.2 GW and becoming fully operational in 2020.

Early wind turbines had capacities of less than 100 kW. While, modern wind turbines commonly have capacities of 2-4 MW, with some offshore turbines exceeding 10 MW.

1. Basic Principles of Wind Turbine Operation

The basic principles of wind turbine operation include:

Energy Capture:

• Wind turbines harness kinetic energy from the wind using rotor blades.
• The aerodynamic design of the blades allows them to capture wind energy efficiently, creating lift and causing rotation.

Conversion of Kinetic Energy to Mechanical Energy:

• The rotating blades are connected to a hub, transferring rotational energy to a low-speed shaft.
• This shaft transmits the mechanical energy to the gearbox.

Mechanical Energy Transfer:

• The gearbox increases the rotational speed from approximately 30-60 RPM (low-speed shaft) to around 1,000-1,500 RPM (high-speed shaft).
• This step-up in speed is essential for efficient power generation.

Mechanical to Electrical Energy Conversion:

• The high-speed shaft drives the generator, converting mechanical energy into electrical energy through electromagnetic induction.
• Magnets within the generator move past wire coils, inducing an electrical current.

Electricity Generation:

• The generated electrical energy is alternating current (AC).
• Power electronics within the turbine convert this AC into a stable form compatible with the grid.
• The electricity is transmitted via cables to a substation, where it is stepped up to higher voltages for distribution.

Control Systems:

• Advanced control systems manage turbine operations, including blade pitch and yaw control, to optimise energy capture and protect against excessive wind speeds.

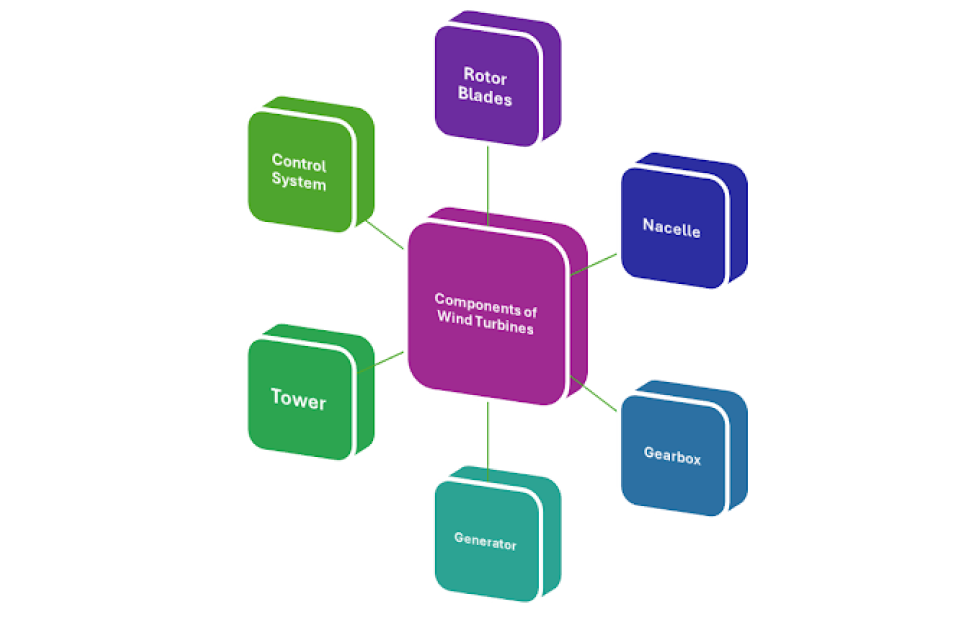

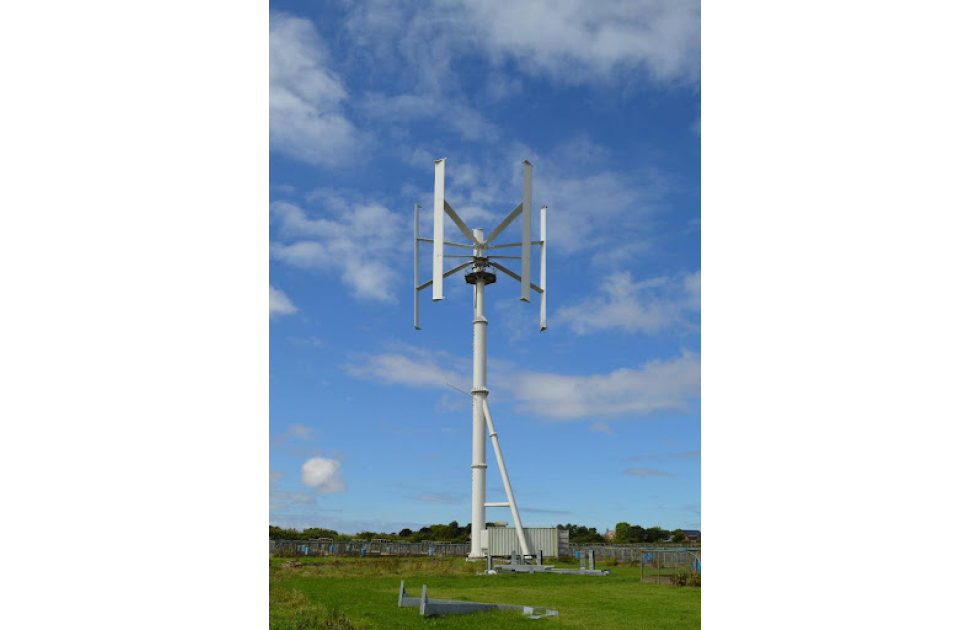

2. Components of Wind Turbines

The different components of wind turbines include:

Rotor Blades:

• These are aerodynamic surfaces designed to capture wind energy.
• The blade design, material, and length influence energy capture efficiency.
• Non-Destructive Testing is crucial for inspecting and maintaining blade integrity to prevent structural failures.

Nacelle:

• The nacelle houses critical components such as the gearbox, generator, and control systems.
• It serves as the central hub for the conversion process.
• Regular wind turbine inspection and repair are essential to ensure the smooth functioning of the nacelle components.

Gearbox:

• This component steps up the rotational speed from the rotor blades to a speed suitable for the generator.
• Gearbox inspection is vital as it is subject to high mechanical stress and potential flaws such as gear tooth wear and cracking.

Generator:

• The generator converts mechanical energy from the gearbox into electrical energy.
• It is a key component where electrical and mechanical systems intersect, requiring careful inspection to avoid faults that could disrupt electricity production.

Tower:

• The tower supports the nacelle and rotor blades, elevating them to capture stronger winds at higher altitudes.
• Tower integrity is vital, with NDT Techniques employed to detect weld defects, corrosion, and structural deformations.

Control System:

• This system ensures the turbine operates optimally and safely, adjusting the blade pitch and yaw to maximise energy capture and minimise stress on components.
• Effective condition monitoring is vital to pre-emptively address any control system malfunctions.

Flaws in Wind Turbines

To understand the necessity or functioning of NDT operations on Wind Turbines in operation or during manufacture, one must thoroughly understand the flaws that Wind Turbines are susceptible to exhibiting.

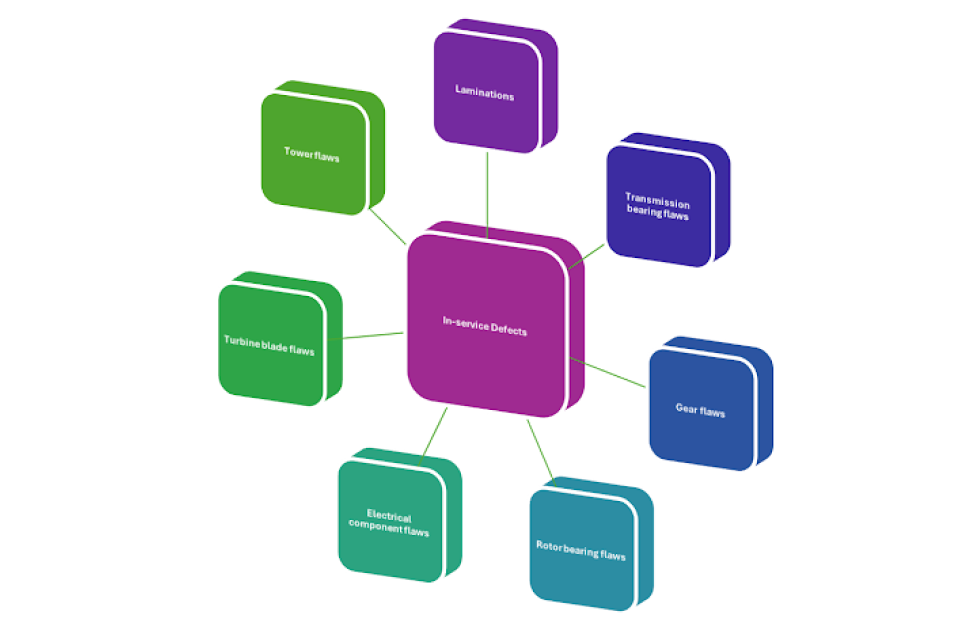

In-service Defects in Wind Turbines

Some of the defects observed in wind turbines in operation include:

Laminations:

• Laminations refer to the layered structure of composite materials used in wind turbine blades.
• Defects such as delaminations, voids, and resin-rich/lean areas can occur during manufacturing or operation.
• These flaws compromise the structural integrity of blades, making blade inspection crucial for maintaining performance and safety.

Transmission Bearing Flaws:

• Transmission bearings are subject to high loads and rotational speeds, leading to wear and fatigue.
• Misalignment can further exacerbate these issues, causing uneven load distribution.
• Regular Wind Turbine Inspection Repair and condition monitoring are essential to detect and address these flaws early.

Gear Flaws:

• Gears in the gearbox experience significant stress, leading to wear, pitting, and potential cracking.
• Effective gearbox inspection techniques, including visual and non-destructive testing methods, are critical to ensure continued structural integrity and prevent failures.

Rotor Bearing Flaws:

• Rotor bearings endure cyclic loads, that lead to fatigue and spalling.
• Inadequate lubrication can accelerate these issues, increasing friction and wear.
• Routine rotor maintenance and lubrication checks are vital for longevity.

Electrical Component Flaws:

• Electrical components can suffer from insulation degradation, leading to failures, arcing, and overheating.
• These issues can cause significant downtime and safety hazards, making regular inspection techniques essential for maintaining electrical integrity.

Turbine Blade Flaws:

• Turbine blades can develop delaminations, cracks, and surface erosion due to environmental exposure and mechanical stress.
• Thorough blade inspection using ultrasonic testing and thermography is necessary to identify and repair these defects.

Tower Flaws:

• The tower, exposed to harsh environmental conditions, can suffer from corrosion, welding defects, and structural deformations.
• Ensuring tower integrity involves regular inspections and repairs to prevent catastrophic failures.

In-Service Flaws:

• In-service turbines face vibration issues, material fatigue, and environmental damage.
• Continuous condition monitoring helps in early detection and mitigation of these flaws to maintain operational efficiency.

Generator Bearing Flaws:

• Generator bearings are prone to thermal degradation, wear, and misalignment, affecting the generator’s performance.
• Regular wind turbine inspection and targeted maintenance practices are key to preventing these issues and ensuring reliable power generation.

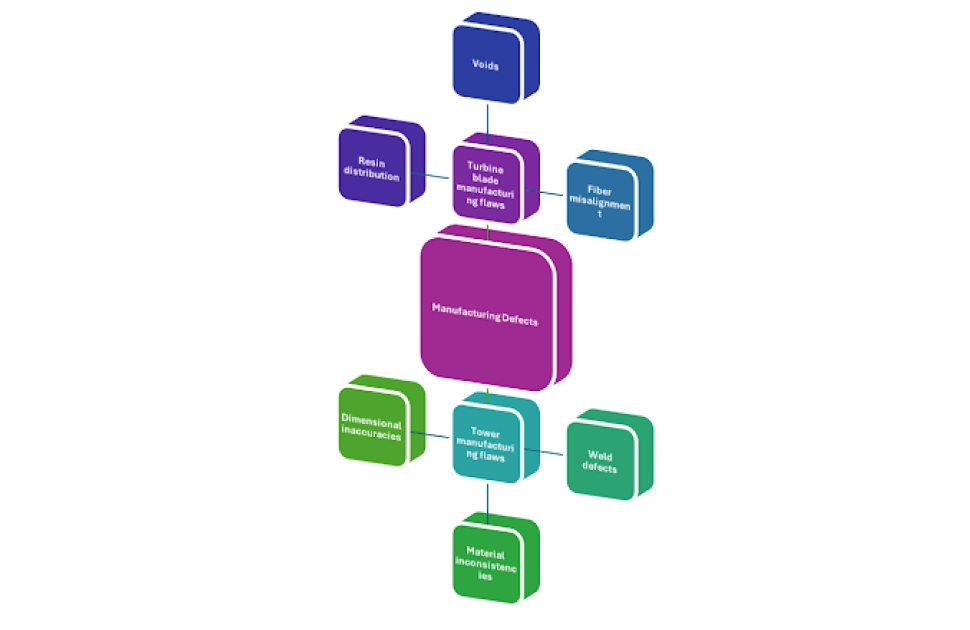

Manufacturing Defects in Wind Turbines

The flaws observed in Wind Turbines during their manufacturing process include:

Turbine Blade Manufacturing Flaws:

• Resin-rich/lean areas: NDT methods such as ultrasonic testing can detect inconsistencies in resin distribution within composite materials, ensuring uniformity and structural integrity.
• Voids: Ultrasonic and radiographic testing are effective NDT techniques for identifying voids or air pockets within turbine blade materials, helping to prevent potential structural weaknesses.
• Fiber misalignment: Improper alignment of reinforcing fibers within composite materials can occur during manufacturing, resulting in fiber misalignment.

Visual inspection, and Computed Tomography (CT) scanning, detect and visualise these misalignments, enabling corrective measures to be implemented to maintain the desired material properties.

Tower Manufacturing Flaws:

• Weld defects: Welding processes during tower component fabrication can introduce defects such as porosity or lack of fusion, compromising weld quality and structural integrity. NDT methods like ultrasonic testing and magnetic particle inspection are commonly used to detect weld defects such as porosity or lack of fusion in tower components, ensuring weld quality and structural integrity.
• Material inconsistencies: NDT techniques such as eddy current testing (ECT) and X-ray diffraction (XRD) can identify variations in material properties during tower manufacturing, facilitating quality control and preventing localised weaknesses.
• Dimensional inaccuracies: Deviations from specified dimensions, such as wall thickness or diameter, can occur during tower component fabrication, increasing the risk of premature failure under dynamic loads.

Laser scanning and Coordinate Measuring Machines (CMMs) are NDT tools used to assess dimensional accuracy in tower components, ensuring adherence to specifications and minimising the risk of premature failure under dynamic loads.

NDT Techniques for Wind Turbine Inspection

NDT methods are essential for maintaining the efficiency and sustainability of wind power generation while reducing downtime and preventing the need for repair. The NDT techniques applied to test wind turbines during their manufacture include:

1. Ultrasonic Testing:

Ultrasonic Testing detects internal flaws such as delaminations and voids in composite materials, ensuring the quality and reliability of turbine structures.

2. Radiographic Testing:

Radiographic Testing provides detailed imaging of internal structures, aiding in accurate defect detection and assessment.

3. Thermography:

Thermographic Inspection identifies thermal irregularities indicative of delaminations and voids, ensuring the integrity and performance of turbine structures.

The NDT techniques applied during the in-service inspection of wind turbines include:

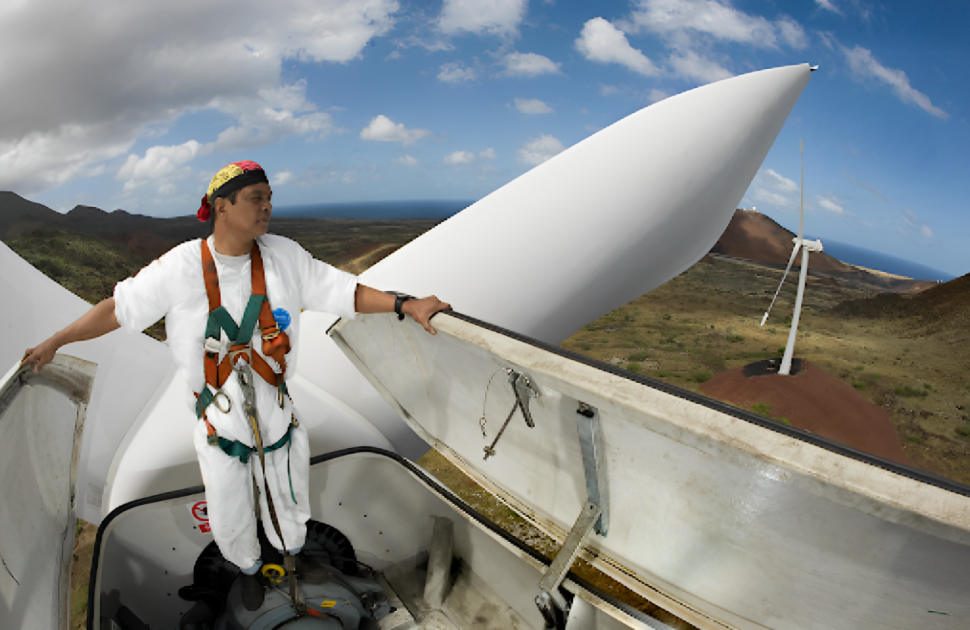

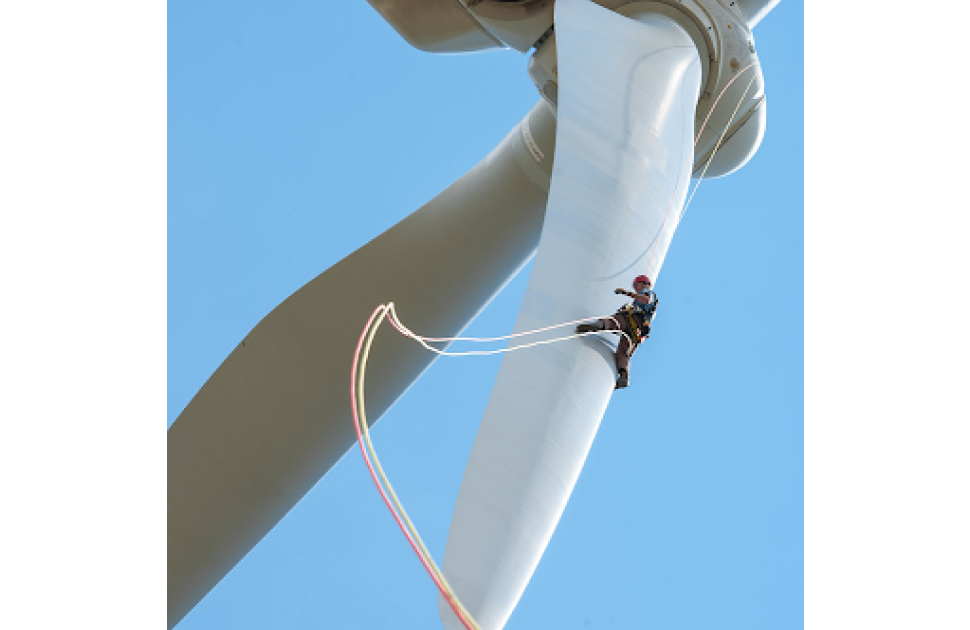

1. Visual Inspection:

Visual inspection is essential for routine checks on wind turbine components, providing operators with a quick assessment of wear, damage, or deterioration.

2. Vibration Analysis:

Vibration analysis tests vibration signatures, allowing operators to detect anomalies indicative of faults or mechanical issues, enabling proactive maintenance to prevent component failure.

3. Acoustic Emission Testing:

Acoustic Emission Testing helps monitor acoustic emissions resulting from internal stress or deformation, enabling the early detection of cracks and structural weaknesses.

4. Oil Analysis:

Oil analysis assesses oil samples for contaminants and chemical properties. Using this technique, operators can identify potential gearbox issues early, guiding maintenance strategies to optimise performance and extend the operational life of turbines.

5. Eddy Current Testing:

ECT detects surface and sub-surface defects such as cracks and corrosion.

Future Advancements and Innovations

Growth in the renewable energy sector requires an increased focus on NDT technologies and their advancement. The future scope of Wind Turbine technology and its inspection is vast, and includes the following:

1. Integration of Advanced Sensors and IoT:

Real-time monitoring and data analytics for predictive maintenance, enables proactive intervention to prevent potential failures.

2. Drone Inspections:

Enhanced accessibility and efficiency in inspecting large structures, permits comprehensive and cost-effective assessments of wind turbine components.

3. Advanced Composite Materials:

The reliability and Longevity of Wind Turbine Blades and towers have led to the development of more durable and defect-resistant materials for,

4. Automated NDT Systems:

Robots and automated systems for consistent and precise inspections have reduced human error and increased inspection efficiency.

5. Machine Learning and Artificial Intelligence:

AI algorithms for data analysis and anomaly detection enable more accurate and efficient identification of defects in wind turbine components.

6. Wireless Sensor Networks (WSN):

Deployment of Wireless Sensor Networks for continuous monitoring of structural health, providing real-time insights into the condition of wind turbines.

7. Augmented Reality and Virtual Reality:

Integration of AR and VR technologies for remote inspection and training purposes, enhancing accessibility, and reducing downtime.

8. Additive Manufacturing (3D Printing):

3D printing technology for rapid prototyping and production of customised components improves flexibility and reduces lead times for wind turbine repairs.

Wind turbine inspection and maintenance can rely on advanced NDT techniques to ensure reliability, safety, and longevity. As we embrace these advancements and continue to push the boundaries of technology, we pave the way for a future powered by clean and sustainable wind energy.

Key Takeaways

• NDT techniques maintain wind turbine reliability and safety by detecting flaws such as delaminations, cracks, and corrosion in vital components like rotor blades, gearboxes, and towers.
• NDT methods are utilised to identify in-service and manufacturing defects including laminations, transmission bearing flaws, gear flaws, rotor bearing flaws, electrical component flaws, turbine blade flaws, tower flaws, in-service flaws, and generator bearing flaws.
• Various NDT techniques such as ultrasonic testing, radiographic testing, thermography, visual inspection, vibration analysis, acoustic emission testing, oil analysis, and eddy current testing are employed for wind turbine inspection during both manufacturing and in-service phases.
• The future of wind turbine inspection involves advancements in sensor integration, drone inspections, advanced composite materials, automated NDT systems, machine learning, wireless sensor networks, augmented reality, virtual reality, and additive manufacturing, all aimed at enhancing reliability, safety, and sustainability in wind energy generation.

FAQs

1. How does NDT contribute to wind turbine maintenance and safety?

A: NDT detects defects in critical components like rotor blades, gearboxes, and towers, ensuring early maintenance to prevent failures and uphold safety standards.

2. What are some common flaws in wind turbines, and how are they detected and addressed using NDT techniques?

A: Common flaws include delaminations, voids, cracks, and corrosion. NDT techniques like UT, RT, thermography, visual inspection, and acoustic emission testing identify these flaws, allowing for timely repairs such as blade patching and gearbox refurbishment to maintain turbine reliability and safety.
