Saving energy through leak detection in compressed air systems is an important issue affecting all areas of manufacturing and process technology. Successful leak detection with leak detectors and the associated repairs to the compressed air system achieves an average saving of 35%. Regular non-destructive leak detection with an ultrasonic testing device saves energy and cost and increases operational safety and plant reliability.
What is Leak Detection?
Ultrasonic leak detection is an advanced and effective NDT Method used in various industries to identify and locate leaks in compressed air, inert gas, and vacuum systems Reducing energy consumption has a lot of social and political interest as a way of achieving current energy and climate targets.
With the implementation of the 2015 EU Energy Efficiency Directive, companies of a particular size and above are obligated to carry out energy audits. Companies may even get certified to standards such as DIN EN ISO 50001 and EMAS.

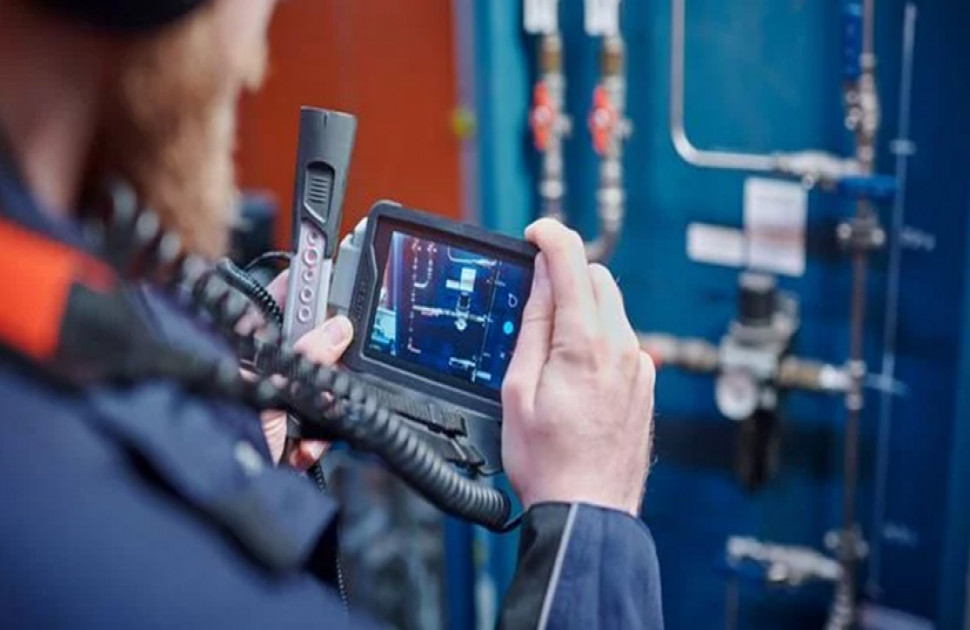

Image Credit: AMProbe
Compressed air production is an expensive process due to the low level of efficiency. Compressed air losses from leaks provide a lot of potential for increasing energy efficiency.
State-of-the-art broadband Ultrasound testing technology is an important tool that helps companies to achieve their targets. Smartphone-based devices guide service engineers throughout the entire testing procedure: from regular leak detection and the automatic evaluation of leaks in l/min right through to documentation
What are the Working Principles of Leak Detection?
The core principle of ultrasonic leak detection revolves around detecting high-frequency sounds, typically from 20 kHz to 100 kHz, above the audible range for humans. These ultrasonic frequencies are produced by the turbulent flow of gases escaping through a leak.
Image Credit: Rasmech
The process of ultrasonic Leak Detection can be broken down into the following steps:
Generation of Ultrasonic Waves:
When a gas leaks through a small orifice, it generates high-frequency ultrasonic sound waves due to the turbulence created as the gas transitions from a high-pressure environment to a lower-pressure one.
Detection by Sensors:
Ultrasonic leak detection equipment employs sensitive microphones or Transducers Capable of Detecting these high-frequency sound waves. These sensors convert the ultrasonic waves into electrical signals that can be analysed and visualised.
Signal Processing:
The electrical signals from the sensors are processed using sophisticated algorithms that filter out background noise and amplify the relevant ultrasonic signals.
Visualisation and Analysis:
The processed signals are displayed on the equipment’s interface, often as visual indicators or spectral plots. This allows operators to pinpoint the exact location of the leak and assess its severity.
Techniques Used in Ultrasonic Leak Detection
Several techniques are employed within ultrasonic leak detection to ensure precise and reliable results. These include:
Contact and Non-Contact Detection:
Ultrasonic leak detection can be performed using contact and non-contact methods. Contact detection involves placing the sensor directly on the surface, while non-contact detection utilises directional microphones to scan the area from a distance.
Heterodyning:
This technique involves converting high-frequency ultrasonic signals into lower frequencies within the audible range, making it easier for operators to interpret the sounds and identify leaks.
Spectral Analysis:
Advanced ultrasonic leak detection equipment often includes spectral analysis capabilities, allowing for the detailed examination of frequency patterns. This helps distinguish leak sounds from other ultrasonic noise sources.
Acoustic Imaging:
Some ultrasonic leak detection systems have acoustic cameras visually representing sound waves. These images help in locating leaks more accurately and quickly.
Frequency Tuning:
Operators can adjust the frequency sensitivity of the detection equipment to focus on specific ranges where leaks are most likely to occur, improving detection accuracy.
Ultrasonic leak detection combines advanced technology and techniques to offer precise, reliable, and non-destructive leak detection solutions. Its applications in industrial settings provide significant benefits in terms of cost savings, energy efficiency, and maintenance reliability.
Advantages of Ultrasonic Leak Detection
Ultrasonic Leak Detection utilises high-frequency sound waves to detect the subtle noise created by leaks, offering numerous benefits that contribute to cost savings, operational efficiency, and maintenance reliability.
Detect Leaks in Compressed Air, Inert Gas, and Vacuum Systems:
Ultrasonic leak detection can identify leaks in many systems, including compressed air, inert gas, and vacuum systems, ensuring comprehensive coverage for various industrial applications.
Save up to 35% of Energy Costs:
By identifying and repairing leaks promptly, ultrasonic leak detection can lead to significant energy savings, potentially reducing energy costs by up to 35%. This optimises resource usage and lowers operational expenses.
Enhanced Leak Detection Accuracy:
The high sensitivity of ultrasonic leak testing allows for precise pinpointing of leak locations, ensuring accurate and efficient leak detection. This reduces the time and effort required for maintenance and repairs.
Non-Destructive Leak Detection:
Ultrasonic leak detection is a non-invasive method that does not damage the system or test subjects. This preserves the integrity of the equipment and avoids additional repair costs.
Pipeline Leak Detection:
This method is particularly effective for Detecting Leaks in the Pipeline, allowing for early identification and prevention of potential issues that could lead to costly repairs or operational downtime.
Visualisation of Leaks:
Advanced ultrasonic leak detection equipment can visualise leaks, providing clear and detailed images. This helps the prompt identification and assessment of the severity of leaks.
Leak Detection Sensors:
Utilising specialised sensors, ultrasonic leak detection technology can cover large areas and detect leaks that traditional methods may overlook. This comprehensive detection capability ensures no leak goes unnoticed.
Simplified Reporting:
The generation of detailed leak reports from ultrasonic leak detection equipment helps in documenting findings, planning maintenance schedules, and tracking the effectiveness of repairs over time, enhancing overall maintenance management.
Environmentally Friendly:
By reducing energy waste and preventing leaks, ultrasonic leak detection contributes to more sustainable industrial practices, supporting environmental conservation efforts.
Ultrasonic leak detection equipment provides precise, non-destructive leak detection supporting cost savings and operational excellence. Ultrasonic leak detection is widely applied across various industries, including aerospace, automotive, manufacturing, and utilities. Its applications range from routine maintenance inspections to detailed assessments of critical infrastructure, ensuring operational efficiency and safety.
Key Takeaways
- Ultrasonic leak detection offers highly accurate and reliable results, enabling early detection and repair of leaks in various industrial systems.
- Implementing ultrasonic leak detection can significantly reduce energy costs by up to 35% and improve overall operational efficiency.
- This technology is non-invasive, preserving the integrity of the inspected systems and equipment while ensuring thorough leak detection.
FAQs
1. What industries benefit most from ultrasonic leak detection?
A: Ultrasonic leak detection is widely used in aerospace, automotive, manufacturing, and utilities due to its precision, reliability, and non-destructive nature.
2. How does ultrasonic leak detection improve energy efficiency?
