Remote NDT: Exploring the Code in Oil & Gas Industry

Table of Content

• Common Defects in the Oil & Gas Industry
• Operational Scenarios in Remote NDT
• Remote NDT Technology and Methods
• Disadvantages of Utilizing Remote Ndt Techniques
• Key Takeaways

Non-destructive Testing has historically stood as the stalwart guardian of material integrity and structural safety. However, the ever-evolving operational landscapes, venturing into further inaccessible frontiers, have generated the imperative need for remote NDT Techniques. From the unforgiving offshore oil and gas platforms to the operational dangers of nuclear power facilities, where high radiation levels pose inherent hazards, remote NDT Technologies have emerged as saviors.

These advanced approaches empower operators to monitor the structural soundness of Pipelines and vital components while circumventing the dangers faced by human personnel. In the Aerospace Industry, where reaching and inspecting intricate aircraft components is a formidable challenge, remote NDT techniques not only assure passenger safety but also enhance the performance and longevity of aerospace assets to the spotlight.

The dawn of remote NDT Methodologies marks a pioneering leap toward the preservation of material integrity and structural safety. By transcending barriers of inaccessibility and risk, these techniques not only serve as sentinels for human lives but also as pillars of efficiency and reliability in safeguarding critical infrastructure. In today's engineering landscape, where once-unthinkable feats are now within reach, remote NDT Test stands as the vanguard of innovation, ensuring the enduring durability of our most essential assets.

Common Defects in the Oil & Gas Industry

Remote NDT Techniques play a vital role in the Oil and Gas Industry, where safety and environmental considerations are of utmost importance. Some common defects in the oil and gas industry that may require testing using remote NDT methods include:

1. Corrosion:

Corrosion is a persistent issue in pipelines and other equipment in the oil and gas industry. It causes a deterioration in the state of the material, due to gradual chemical reactions with the surrounding environment and materials carried by the pipelines. Corrosion weakens the structural integrity of Pipelines, potentially leading to leaks, spills, and catastrophic failures that can have severe environmental and financial consequences.

Techniques such as ultrasonic and radiographic testing, enable inspectors to assess the extent of corrosion without the need for human entry, making it safer and more efficient. By employing drones or robotic systems equipped with NDT Sensors, operators can identify corrosion spots in remote or inaccessible areas.

2. Weld Defects:

Welding defects, including cracks, porosity, incomplete fusion, and lack of penetration, can compromise the strength and integrity of Welded Joints in Pipelines. Weld defects can lead to fractures and leaks, posing safety hazards and environmental risks, especially in oil and gas pipelines. Remote NDT Methods like radiographic and phased array ultrasonic testing are used to inspect welds in pipelines. Welds are assessed for their adherence to industry standards using Remote Inspection via advanced sensors and equipment.

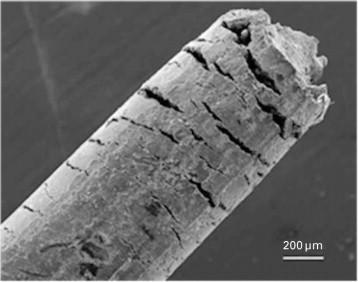

3. Hydrogen-Induced Cracking (HIC) and Stress Corrosion Cracking (SCC):

HIC and SCC are forms of corrosion that can occur in pipelines due to high levels of hydrogen and tensile stress, respectively. These defects can cause brittle fractures in pipelines, leading to leaks, ruptures, and accidents, posing significant risks in the Oil and Gas Industry. Remote NDT Techniques, such as Electromagnetic Acoustic Transducers (EMATs) and guided wave testing, are used to identify HIC and SCC in pipelines. Remote inspections provide a safe and efficient means to detect these defects in challenging environments.

4. Erosion and Abrasion:

Erosion and abrasion result from the physical wear and tear of Pipeline surfaces due to the flow of abrasive materials, such as sand and solid particles. Erosion and abrasion can thin pipeline walls, reducing structural integrity and potentially leading to failures and leaks.

Methods including remote-operated robotic platforms equipped with ultrasonic or eddy current sensors, are employed to inspect pipelines for signs of erosion and abrasion. These methods promote operator safety during the structural assessment of structures and equipment under study.

5. Fouling and Scaling:

Fouling involves the accumulation of unwanted materials on equipment surfaces while scaling entails the deposition of minerals or scale. Fouling and scaling reduce the efficiency of heat exchangers, increase energy consumption, and can lead to operational problems in the Oil and Gas Industry.

6. Scaling in a pipeline

Remote NDT techniques, such as Infrared Thermography and remote-operated drones, inspect heat exchangers for fouling and scaling. These remote inspections help identify issues early, increasing efficiency and reducing maintenance costs.

7. Material Defects:

Material defects, such as inclusions, voids, and laminations, can occur during the manufacturing of pipeline components, weakening the material's structural integrity.

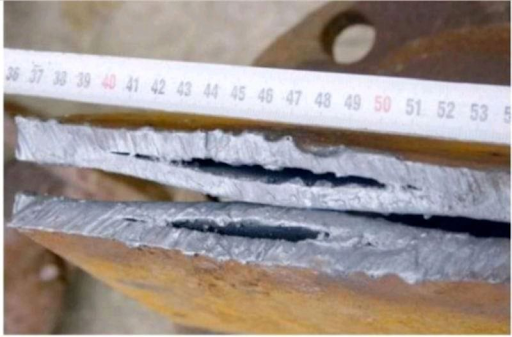

8. Lamination defect in a Steel Plate

Material defects can lead to equipment failures and safety hazards in oil and gas operations, especially in Pipelines. Material defects in pipelines are detected using remote NDT Methods like Phased Array Ultrasonic Testing and Remote Visual Inspection.

These ensure meticulous testing in unfavorable environments. These defects and deformities in the Oil and Gas Industry emphasize the critical importance of regular NDT inspections to detect and mitigate potential risks. Neglecting such issues can lead to disastrous consequences, including loss of life, environmental damage, and financial repercussions.

Operational Scenarios Involving Critical Remote NDT in the Oil & Gas Industry

Using traditional NDT Techniques in hazardous and often inaccessible environments in the Oil and Gas industry can pose various safety and environmental challenges. To truly understand the merits of remote NDT, one must understand the critical operational scenarios within the oil and gas industry wherein the traditional, hands-on NDT techniques fall short. These include the following:

1. Offshore Platforms:

Offshore oil and gas platforms reside in unforgiving and corrosive environments at a significant distance from the safety of the shore. These intricate structures, replete with Pipelines and equipment, demand meticulous inspections. The offshore environment exposes equipment to relentless saltwater, unpredictable weather patterns, and the hazards of corrosion. Moreover, the rigors of working at extreme heights and in Confined Spaces are challenges that place human inspectors at considerable risk.

2. Subsea Pipelines:

Subsea pipelines, submerged beneath the ocean's depths, facilitate the transport of hydrocarbons from offshore wells to onshore facilities. The submerged domain necessitates inspections that are both rigorous and remote. Subsea pipelines grapple with high-pressure conditions, deep-water conundrums, and the persistent threat of marine encrustation and Corrosion. Traditional inspections, due to the constraints of underwater work, invariably entail costly and logistically intricate diving operations.

3. Refineries:

Refineries house a labyrinth of equipment, tanks, and pipes, each demanding frequent examination. Refineries operate at elevated temperatures and under pressurized conditions. The dangers posed by these circumstances are compounded by the potential for exposure to noxious or flammable gases, rendering human inspection perilous.

4. Storage Tanks:

Storage tanks, used to store refined petroleum products, and chemicals, are critical for maintaining the industry's ceaseless supply chain. These massive tanks may house corrosive or volatile contents, a situation that demands their regular inspection. Traditional inspections invariably entail the laborious and costly process of tank emptying and cleaning, disrupting operations and causing financial setbacks.

5. High-Risk Environments:

Some oil and gas operations unfurl in high-risk and remote locales, where the Arctic's biting chill or the deep-sea's abyssal depth present unique challenges. The extremities of these environments, featuring tempestuous weather, frigid temperatures, or far-flung locations, conspire to make on-site inspection an expensive, complex, and potentially life-threatening endeavor.

Remote NDT Technology and Methods

The current trends and ongoing research in the field of remote NDT have led to the growth of many developments in sensor technology, automation, and data analytics. Some Advanced NDT Techniques that are integrated with remote NDT include the following:

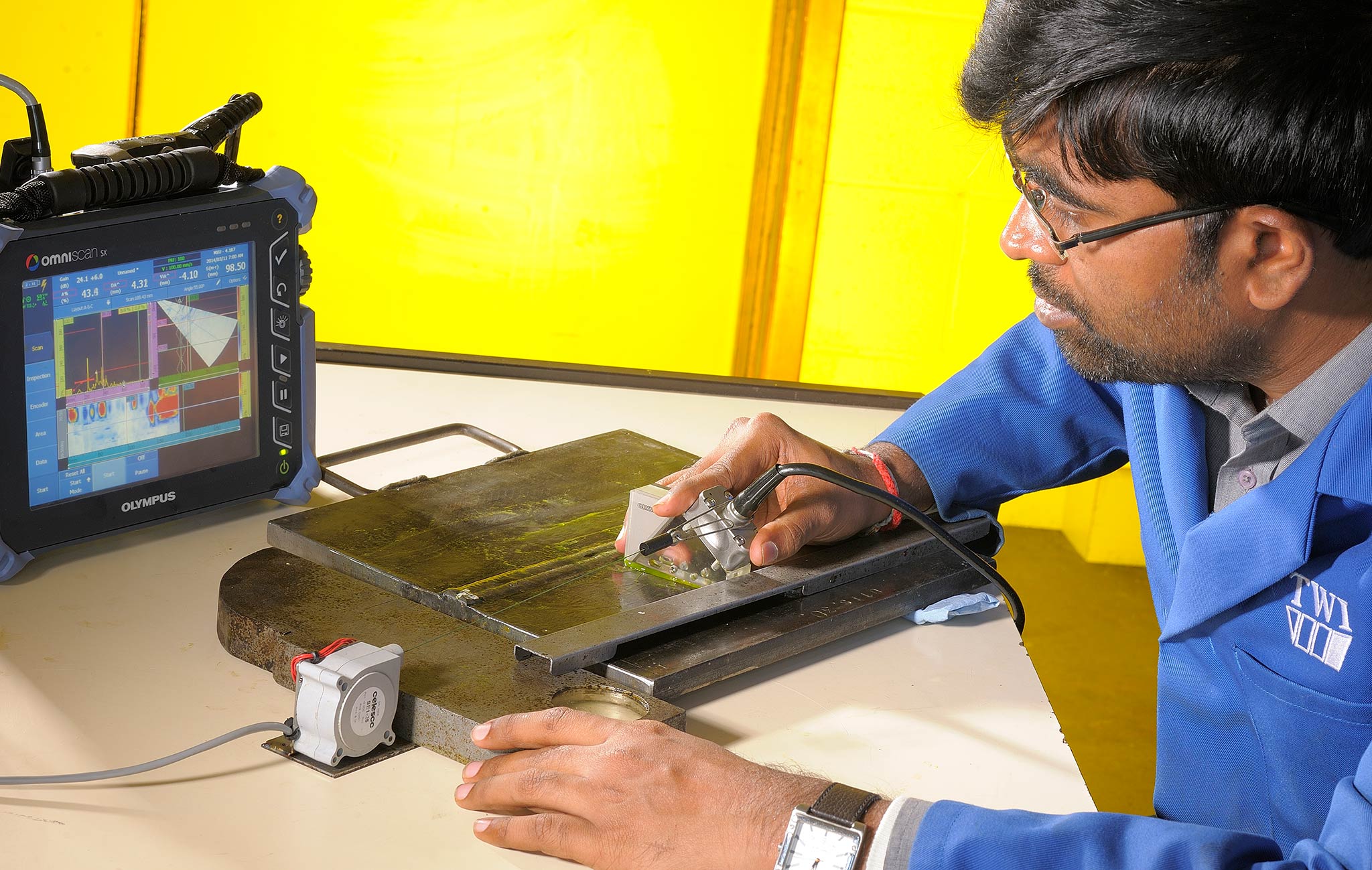

1. Phased Array Ultrasonic Testing:

PAUT has gained widespread adoption in the Oil and Gas Sector due to its ability to provide detailed imaging and detection of defects. It offers precise control of the ultrasonic beam, allowing for better defect characterization. On average, PAUT can provide a 30-40% reduction in inspection time compared to conventional Ultrasonic Testing.

2. Guided Wave Testing:

Guided wave testing is particularly valuable for inspecting long stretches of Pipelines. It can cover distances of up to 100 meters in a single scan. In practice, Guided Wave Testing has demonstrated a 90% success rate in detecting corrosion and erosion anomalies in pipelines.

3. Guided Bend Testing:

GBT uses guided waves to inspect the integrity of welds and identify defects in pipelines and other structures. It provides a rapid and efficient means of evaluating the quality of welds, particularly in situations where direct access is challenging.

4. Electromagnetic Acoustic Transducers:

EMATs are non-contact NDT sensors that offer advantages in difficult environments. They have been shown to be effective in inspecting Pipelines for defects. An industry report indicates that EMATs have reduced inspection time by 20% and have improved the ability to detect cracks and flaws in challenging conditions.

5. Digital Radiography (DR) with Computed Tomography (CT):

Digital Radiography involves using digital sensors to capture X-ray images, while computed tomography creates detailed 3D images from X-ray cross-sections. This advanced technique provides a comprehensive view of the internal structure of components, assisting in the detection of corrosion, weld defects, and foreign material.

6. Quantum Cascade Laser Absorption Spectroscopy (QCLAS):

QCLAS utilizes quantum cascade lasers to analyze the absorption of specific wavelengths by gas molecules. This technique is accurate and can detect trace amounts of gases. QCLAS is valuable for gas Leak Detection in Pipelines and facilities, providing early warning of potential safety hazards.

7. Nuclear Magnetic Resonance (NMR) Logging:

NMR logging involves using magnetic fields and radiofrequency pulses to analyze the properties of subsurface formations. Widely used in the Oil and Gas Industry for reservoir characterization, NMR logging can provide insights into fluid content, porosity, and permeability of rocks.

8. Digital Holography:

Digital holography captures and reconstructs the entire wavefront of light scattered by an object, producing a 3D image. In NDT, digital holography can be applied for non-contact and Non-destructive Evaluation of surface deformations, cracks, and structural integrity.

9. Optical Coherence Tomography (OCT):

OCT uses low-coherence interferometry to create cross-sectional images with micrometer-level resolution. In NDT, OCT is employed for inspecting thin films, coatings, and internal structures of materials, providing detailed information about subsurface features.

These Advanced NDT Methods have been integrated with advanced sensors, data management techniques, and remote facilities, to facilitate NDT by minimizing or often eliminating human involvement in the process, and the hazards that can arise from it.

The technologies included involve the following:

I. Crawlers:

Crawlers are robotic devices designed to move along the surfaces of structures, such as pipelines or storage tanks, to perform inspections. In the oil and gas industry, crawlers are commonly used to inspect the external surfaces of pipelines for corrosion, dents, and other defects. Some crawlers are equipped with advanced sensors, cameras, and sometimes even ultrasonic testing probes to gather detailed information about the condition of the pipeline.

II. In-Line Inspection (Pigging):

In-line inspection, often referred to as pigging, involves using devices known as pigs to inspect the internal condition of pipelines.

III. Laser Scanning Technology:

Laser scanning involves using laser beams to create a highly detailed 3D structure model, allowing for precise measurements and defect analysis. In the oil and gas sector, laser scanning is employed for assessing complex geometries, such as welds and corrosion pitting, with high accuracy.

10. Nanocomposite Sensors for Structural Health Monitoring:

Nanocomposite materials embedded with sensors are employed to continuously monitor structural health. These sensors can detect changes at the nanoscale level, providing early indications of material degradation, Corrosion, or structural weaknesses.

11. Remote Sensing Platforms:

I. Drones (Unmanned Aerial Vehicles - UAVs):

Drones equipped with advanced NDT sensors have been used extensively for aerial inspections of pipelines and facilities. The adoption of drones has increased inspection efficiency by up to 50% in some cases, with a reduction in human exposure to hazardous environments.

II. Remotely Operated Vehicles (ROVs):

ROVs are employed in subsea inspections, especially for Pipeline and structural integrity assessments. In a recent subsea Pipeline Inspection project, ROVs achieved an average cost reduction of 25% compared to conventional diver-based inspections.

III. Autonomous Robotic Systems:

Autonomous robotic systems are gaining prominence for inspections in Confined Spaces and hazardous environments. These systems can adapt to various tasks, including Visual inspections and NDT data collection. They have demonstrated a 60% reduction in inspection time in confined areas.

12. Data Transmission and Analysis:

Real-time data streaming via satellite communication has gained popularity in remote NDT. In a study, 92% of companies reported faster data transmission compared to conventional methods. This reduced inspection time and minimized operational downtime.

I. Real-time Data Streaming:

Real-time data streaming through satellite and wireless communication technologies has reduced data transfer times by up to 70%. This has enabled remote analysis, leading to faster decision-making and immediate corrective actions when necessary.

II. Wireless Communication:

Wireless communication has been pivotal in providing NDT inspectors with immediate access to data. On average, it has accelerated the data transfer process by 50%, reducing inspection time and streamlining operations.

III. Cloud-based Analytics:

The integration of cloud-based analytics has enabled the storage and analysis of large datasets. This has improved the accuracy of defect detection and predictive maintenance by up to 20%, preventing critical failures.

13. Integration of Artificial Intelligence (AI) and Machine Learning:

I. AI for Defect Detection:

Artificial Intelligence algorithms have demonstrated an impressive average accuracy of 95% in defect detection during remote NDT inspections. By identifying anomalies in real-time data, AI systems reduce the risk of overlooking critical defects.

II. Predictive Maintenance with Machine Learning:

Machine learning algorithms have enabled predictive maintenance models that can forecast maintenance needs with an accuracy rate of 85%. This proactive approach to asset management has resulted in a reduction of unscheduled downtime by 40%.

Disadvantages of Utilizing Remote NDT Techniques

Like every new technology and technique, Remote NDT Methods come with their own set of demerits. Some of these include:

1. Equipment Costs:

The high initial costs associated with advanced NDT equipment can be a financial barrier for smaller organizations.

2. Technical Glitches and Calibration:

Technical glitches, potential malfunctions, and calibration errors may lead to inaccuracies in inspection data.

3. Data Management and Analysis:

Managing and analyzing vast data volumes requires robust data management and analysis capabilities.

4. Regulatory and Certification Challenges:

Evolving regulations and standards demand continuous compliance efforts, aligning certifications accordingly.

5. Integration with Existing Systems:

Complex integration with existing infrastructure and information systems may disrupt inspection workflows.

6. Remote Environment Challenges:

Hostile and remote environments introduce additional operational and logistical complexities.

Key Takeaways

• The future of remote non-destructive testing in the oil and gas industry appears to be teeming with promising innovations.
• Advances in sensor technology are set to revolutionize defect detection, making sensors more sensitive, versatile, and capable of identifying even the subtlest anomalies.
• The integration of multimodal sensors, miniaturized wireless sensors, and other cutting-edge NDT Technologies is poised to offer a more comprehensive understanding of structural integrity.
• Concurrently, research in automation and robotics is forging new frontiers, with autonomous Robotic Systems evolving to autonomously navigate complex environments, adapt to diverse inspection scenarios, and make real-time decisions with AI algorithms.
• Swarm robotics is emerging as an efficient approach for comprehensive inspections, and semi-autonomous systems are enhancing human-robot collaboration.
• Data analytics is expanding, bolstered by advanced algorithms that can swiftly process and analyze extensive datasets, facilitating predictive maintenance and defect analysis.
• Non-intrusive techniques, such as remote acoustic emission monitoring and microwave thermography, are redefining NDT Inspection methodologies. Additionally, energy harvesting sensors are poised to reduce the dependence on batteries in remote and inaccessible locations.
• These developments collectively herald a future where remote NDT is not just a safety net but a dynamic and proactive guardian of material integrity and structural safety in the Oil and Gas Industry.
• As the horizon of possibilities expands, remote NDT stands poised to reinforce its role in ensuring the longevity and reliability of critical infrastructure in the ever-evolving operational landscapes of this vital industry.
