How Thermal Imaging is Used in the Detection & Tracking of Drones

How Thermal Imaging is Used in the Detection & Tracking of Drones

Table of Content

Thermal imaging has become an essential tool for law enforcement agencies worldwide in detecting and tracking drones. With the increasing use of drones for illicit activities such as smuggling, terrorism, and trespassing, police need to have reliable and accurate methods for identifying and monitoring these unmanned aerial vehicles (UAVs). Thermal imaging technology offers several advantages, making it an increasingly popular choice for border security and other law enforcement agencies.

What is Thermal Imaging?

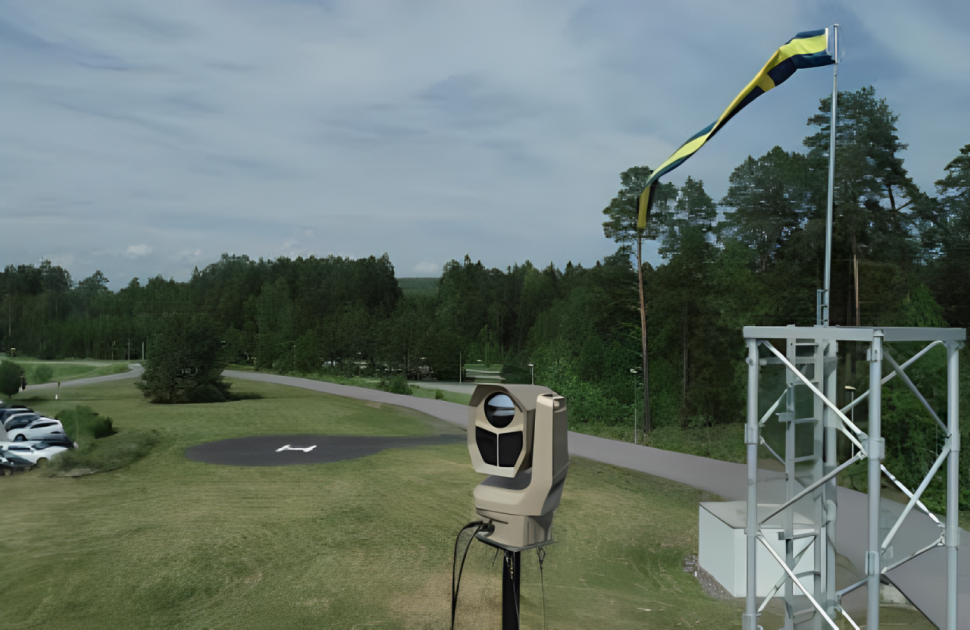

what is thermal imaging

Thermal imaging uses unique cameras to capture energy on an infrared wavelength and transmit it into an image. Any event in nature emits and reflects energy as heat. This energy can be charged with unique cameras and converted into colours in pixels. Since we’re not looking at the light but at heat, thermal cameras can see in well-lit conditions and darkened conditions, aren’t blinded by headlights, and can see a person in camouflage or hiding behind light foliage.

While night vision relies on amplifying external lighting conditions (such as stars), thermal imaging requires no active illumination. It will be seen on a starless night or in a dark corridor. Thermal imaging is also highly effective at detecting objects hidden or obscured by bad weather, smoke, or other visual obstructions. This makes it an invaluable tool for law enforcement agencies that detect and track drones in challenging environments.

Read in Detail - Power of Thermography Testing: A Non-destructive Approach

Drone Detection with Thermal Imaging

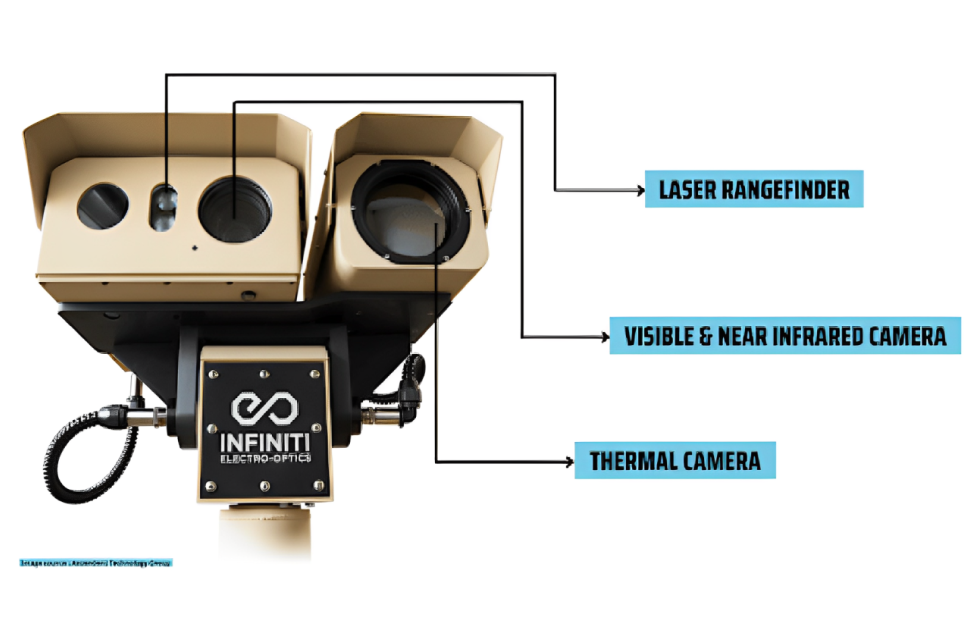

UAV Detector and its parts

One of the primary challenges in detecting and tracking drones is the small size and low altitude at which they typically operate.

  • Many drones are designed to be highly manoeuvrable and can fly at altitudes of just a few hundred feet, making them difficult to spot with traditional surveillance methods.
  • On the other hand, thermal imaging cameras are highly effective at detecting small, fast-moving objects at low altitudes. These cameras can see the heat signature of a drone’s motors and batteries, allowing law enforcement officers to identify and track the UAV even when it is flying at low altitudes or in challenging conditions.
  • In addition to detecting drones, thermal imaging cameras can also identify UAV operators. The heat signature of a person’s body can be seen by thermal imaging cameras, making it possible to locate and apprehend the individual responsible for operating the drone.
  • Thermal imaging is also highly effective at detecting drones attempting to evade detection by flying at high altitudes or hiding behind visual obstructions.

These cameras can see the heat signature of a UAV even when it is flying at high altitudes or hiding behind clouds, making it an invaluable tool for any agency tasked with protecting national borders, the perimeter, or any critical infrastructure.

Benefits of Thermal Imaging for Drone Detection

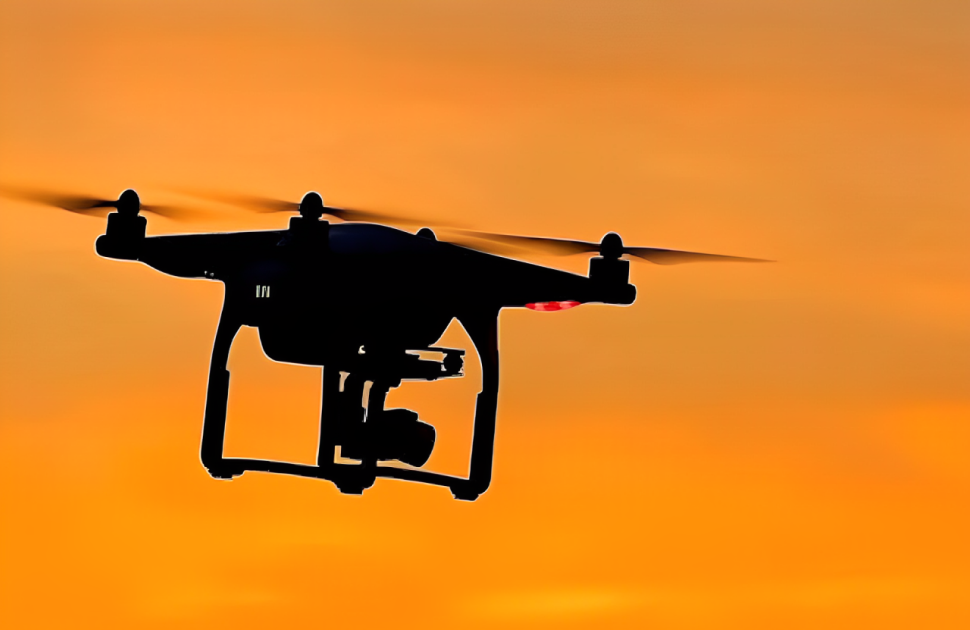

benefits of thermal imaging for drone detection

There are several key benefits to using thermal imaging for drone detection and tracking.

These include:

Versatility:

Thermal imaging cameras can operate effectively in various environments, including low light, darkness, fog, and smoke.

Long range:

Thermal imaging cameras can detect long-range objects, making them practical for border security and other applications where UAVs must be seen and tracked at a distance.

Non-intrusive:

Thermal imaging cameras do not emit any light or other radiation, making them a non-intrusive and safe means of detecting and tracking objects.

Take NDT to New Heights: Find Your Drone Inspection Partner

Thermal Imaging in Drone Detection - Applications


Thermal Imaging in Drone Detection - Applications

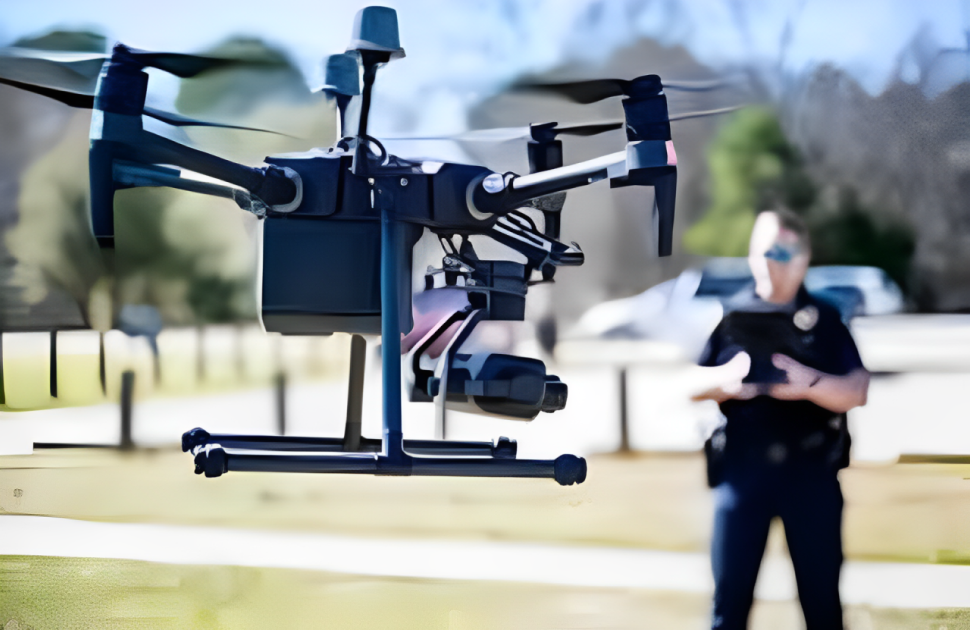

Thermal imaging plays a pivotal role in enhancing the capabilities of drone detection systems, enabling efficient and reliable identification of Unmanned Aerial Vehicles (UAVs) across diverse environments and operational scenarios.

Equipping detection systems with thermal cameras enhances their effectiveness in detecting drones, particularly in challenging conditions where traditional visual surveillance methods may be limited. Some of the meritorious applications of using thermal imaging systems in the detection and tracking of drones include:

1. Signature Differentiations:

Thermal imaging helps differentiate drones from other objects based on their unique thermal signatures.

  • Drones with thermal cameras emit distinct thermal profiles due to the heat from their propulsion systems, batteries, and electronic components.
  • By analysing these thermal signatures, detection systems can accurately discriminate between drones and false positives, such as birds or small aircraft, enhancing drone detection and tracking capabilities.

2. Altitude Detection:

Thermal imaging technology can estimate drone altitude based on the thermal gradient observed in the captured images.

  • On the ascension or descension of drones, their thermal signatures change due to variations in ambient temperature and atmospheric conditions.
  • Detection systems equipped with thermal cameras can assess these thermal gradients to estimate the altitude of detected drones, enhancing situational awareness and response planning for thermal imaging drones.

3. Battery Life Estimation:

Thermal imaging drones can assist in estimating the remaining battery life of detected UAVs based on their thermal signatures.

  • As drones operate, their batteries generate heat, which can be detected using thermal imaging.
  • By monitoring changes in the thermal output of drone batteries over time, detection systems can estimate the remaining battery capacity and predict the duration of drone flight, aiding in strategic decision-making and resource allocation during surveillance operations for drone thermal inspection.

4. Detection of Modified Drones:

Thermal imaging technology enables the detection of modified or customised drones that may have altered external appearances or camouflage.

  • While visual detection systems may struggle to identify modified drones, thermal cameras can detect heat emissions from internal components regardless of external modifications.
  • This capability is valuable in detecting covert or disguised drones used for illicit activities such as smuggling or surveillance, enhancing the effectiveness of thermal imaging drones.

5. Integration with Geo-Fencing:

Thermal imaging drone detection systems can be integrated with geo-fencing technology to create virtual boundaries and restricted airspace zones.

  • By combining thermal imaging with GPS-based geo-fencing, detection systems can identify drones entering prohibited areas based on their thermal signatures and trigger alerts or countermeasures.
  • This integration enhances airspace security and facilitates proactive enforcement of regulatory restrictions on drone operations, particularly those with drones equipped with infrared camera technology.

Weather Impact Analysis:

Thermal imaging enables analysis of the impact of weather conditions on drone detection performance.

  • By studying how weather phenomena such as temperature inversions, atmospheric turbulence, or precipitation affect thermal signatures and image clarity, detection system operators can optimise deployment strategies and sensor configurations for maximum effectiveness in different weather conditions, ensuring reliable drone detection and tracking capabilities.

Integrating thermal imaging technology into drone detection systems offers multiple benefits, including enhanced detection capabilities, improved tracking accuracy, and effective surveillance in challenging environments. Thermal imaging has become an essential tool for law enforcement agencies worldwide in detecting and tracking drones.

These cameras are highly accurate, versatile, and effective at detecting small, fast-moving objects at low altitudes. By leveraging thermal imaging technology, security agencies can strengthen their drone detection capabilities and mitigate potential security risks posed by unauthorised UAV activity.
