A thermographic inspection is a non-destructive testing process that makes defects on the material surface visible to the naked eye and provides visual information on the dimensions of defects via thermal images.
It is a versatile testing method that can be used on metals, composites, and ceramics, among other materials. It is suitable for industries such as aerospace, automotive, and manufacturing.
How Thermography Works

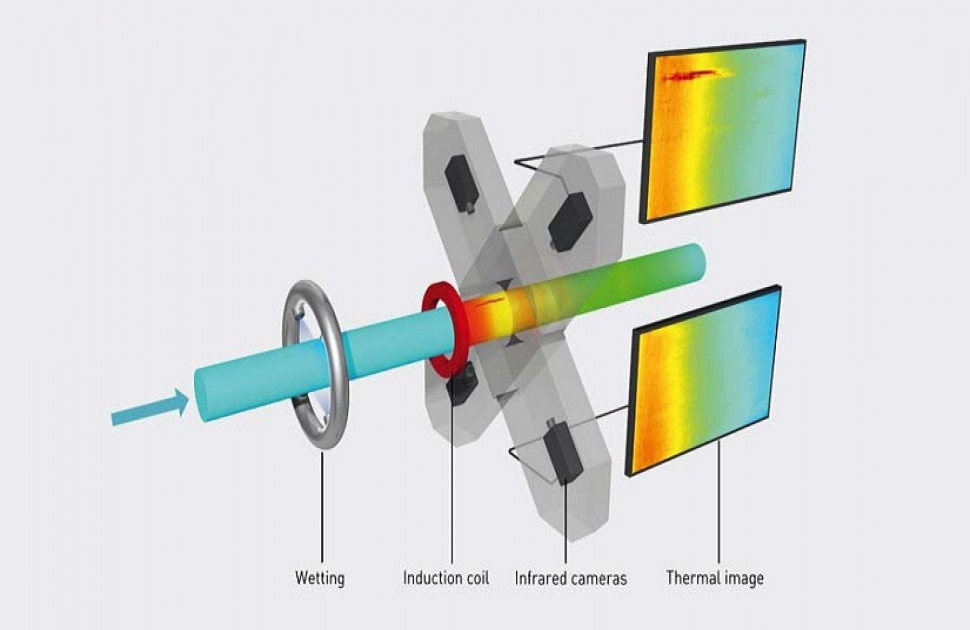

Thermography Testing involves heating a material and capturing the resulting thermal images to identify defects. The process can be broken down into several steps:
1. Heating the Material:
- The material is heated using an induction coil.
- This causes surface temperature changes that are critical for detection.
2. Accurate Results:
- Pre-wetting the material with water before heating ensures uniform temperature distribution.
- Guarantees reproducible and accurate test results.
3. Capturing Thermal Images:
- Infrared cameras capture the temperature distribution across the material surface.
- Thermal images provide a visual representation of temperature variations.
4. Analysing Temperature Variations:
- Defects cause localised temperature increases.
- The amplitude of these temperature increases depends on the size of the defects.
5. Data Evaluation:
- Advanced electronics process the thermal data.
- The system pinpoints defect locations and categorises their severity automatica
Infrared Thermography
Infrared Thermography is a specific application of thermography that uses infrared radiation to detect temperature differences. Its salient features include:
1. Non-Contact Method:
- Works without physical contact with the material.
- Preserves the integrity of the test parts.
2. High Sensitivity:
- Infrared cameras detect minute temperature variations.
- Ensures even the smallest defects are identified.
Thermal Imaging
Thermal imaging converts infrared radiation into visible images, enabling the detection of defects. Its features include the following:
1. Comprehensive Coverage:
- Covers nearly 100% of the material surface.
- Ensures thorough inspection and defect detection.
2. Real-Time Monitoring:
- Provides immediate visual feedback.
- Allows for real-time analysis and decision-making.
Accuracy in Thermography Testing
The test material's surface condition is considered to achieve high accuracy in Thermography Testing. The methods used to ensure accuracy include:
1. Surface Preparation:
- The material is slightly wetted with water before heating.
- This ensures high uniformity and increases the emission degree for accurate temperature measurement.
- Guarantees reproducible test results.
2. Multiple Scans:
- Each surface point is scanned multiple times.
- This helps distinguish between actual material defects and errors.
What are the Applications of Thermography Testing?
Thermography can be used on various materials, including metals, composites, and ceramics. Its applications include but are not limited to the following:
1. Versatile Applications:
- Suitable for industries such as aerospace, automotive, and manufacturing.
- Effective in detecting both surface and subsurface defects.
2. Real-Time Monitoring:
- Provides immediate visual feedback through thermal imaging.
- Enables real-time analysis and decision-making.
Discover Active Thermography for Panel Paintings Inspection - Register Now!
Key Takeaways
- Thermography provides comprehensive defect detection by utilising thermal imaging to make surface defects visible and delivers detailed information on defect dimensions.
- Thermography covers nearly 100% of the material surface without contact, ensuring thorough and non-invasive testing.
- Suitable for various materials including metals, composites, and ceramics. Widely used in aerospace, automotive, and manufacturing industries for surface and subsurface defect detection.
FAQs
1. What types of materials can be tested using thermography?
A: Thermography can be used on multiple materials, including metals, composites, and ceramics. It is particularly effective for materials where surface and subsurface defect detection is crucial.
2. How does thermography ensure accurate defect detection?
B: Thermography ensures accurate defect detection by pre-wetting the material to achieve uniform temperature distribution and performing multiple scans of each surface point to distinguish between real defects and errors.
