Thermography testing in NDT leverages infrared technology to identify temperature variations on the surface of objects. What is the purpose of thermography? This approach is valuable for industries needing efficient, non-invasive methods for identifying faults, weaknesses, or potential hazards in equipment and structures. By producing thermal images, thermography testing operators visualise heat distribution and identify hidden issues such as electrical faults, leaks, or structural weaknesses. Due to its precision, cost-efficiency, and safety, this technique finds applications in diverse sectors, from aerospace to healthcare.
What is thermography testing? Thermographic images provide immediate results, allowing inspectors to analyze conditions and make quick decisions. Additionally, thermography NDT Testing helps identify potential hazards, such as electrical faults or structural weaknesses, preventing accidents and protecting personnel and assets.
How Thermography Testing Works?
Thermography Testing involves using an infrared camera to capture thermal energy, which every object emits at varying intensities based on its material properties, environmental conditions, and the presence of potential faults. This method visualizes temperature variations as thermal images, known as thermograms, with colours representing different heat intensities. These images allow for an analysis of hotspots, cold spots, and thermal anomalies, which can signify problems such as electrical faults, insulation gaps, or material defects.
The principle of thermography is based on the fact that different materials emit infrared radiation at different rates, allowing for the detection of temperature variations. By analyzing these variations, thermographers can pinpoint areas of concern and address them before they escalate into larger issues.
Types of Thermography Inspection
Thermographic inspection can be broadly categorized into the following categories based on the source of thermal excitation. Thermal inspection classifications explained as follows:

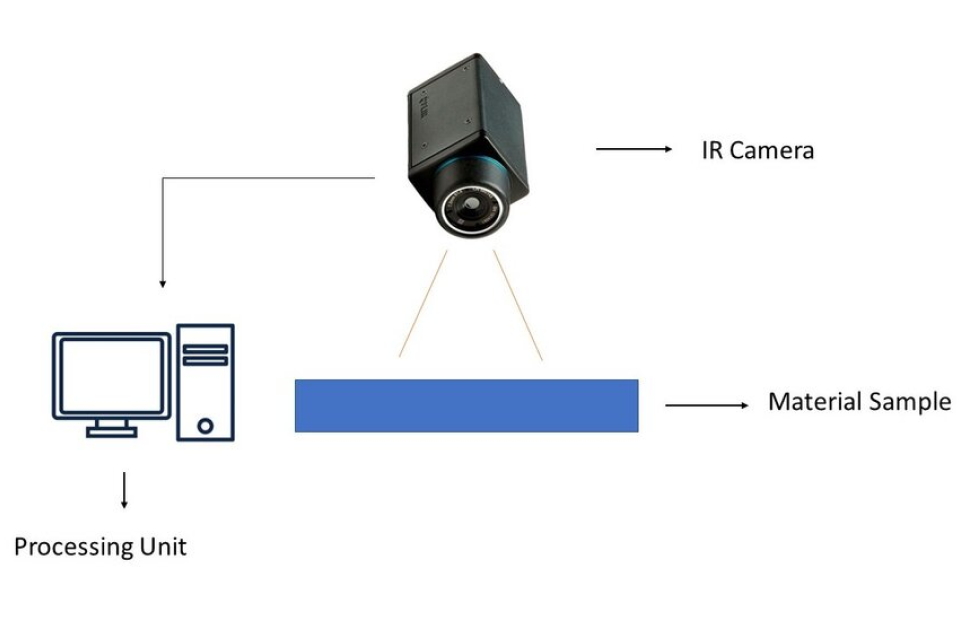

1. Passive Thermography
This NDT Method involves scanning the component during its operation or Immediately after the operation (e.g. Running motor shaft), It does not require an external heat source for heating, it uses the heat generated in the material during its operation.
2. Active Thermography
This method requires an external heat source to heat the component and monitor the flow of heat inside the material.

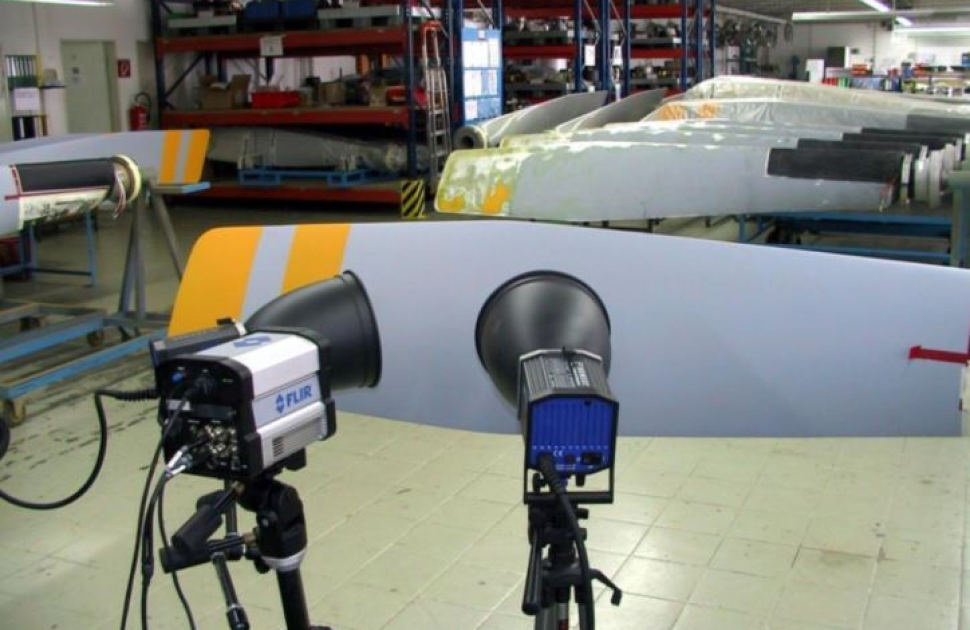

3. Flash Thermography
This method uses flashes of light, to identify the discontinuities that obstruct the flow of heat inside the material.
4. Vibro-Thermography
This method uses an acoustic sound source, and a thermography sensor to detect the heat distribution inside the material, the acoustic sound vibration causes more heat at the edges of cracks due to friction during vibration.
Real-World Applications of Thermography Testing Across Industries
Image Credit: Welding & NDT Institute
Thermography testing has been widely used in various industries such as electrical, mechanical, and building inspections to detect anomalies and potential issues. This Non-destructive Testing Method offers a cost-effective and efficient way to identify problems before they escalate, ultimately saving time and resources for businesses.
Thermography testing is commonly used in electrical systems, mechanical equipment, building inspections, and even medical diagnostics. It can also be applied in research and development to study heat distribution and thermal patterns in various materials and processes.
1. Electrical Utility Industry
The electrical utility sector was one of the earliest adopters of thermography testing due to its ability to detect potential overheating in electrical systems. When inspecting substations, transformers, circuit breakers, and transmission lines, infrared thermography can reveal hotspots indicating excessive resistance, faulty connections, or impending component failure.
Example: Electric utility companies, such as Florida Power & Light (FPL), use thermography to regularly inspect power distribution systems. By identifying issues before they escalate, FPL has reported a significant reduction in power outages and has increased operational efficiency by up to 40%.
2. Building and Construction Industry
In construction, thermography testing is essential for identifying insulation issues, air leaks, and moisture intrusion, all of which can compromise energy efficiency and structural integrity. Inspectors use thermography to ensure that buildings are adequately sealed and insulated, reducing heating and cooling costs and improving occupant comfort.
Example: In a high-rise building project in New York, thermography testing was employed to locate and address air leaks and insulation issues that were resulting in high energy consumption. By making thermographic inspections a routine part of the project, the building owner achieved up to 30% in energy savings and increased sustainability by ensuring proper building envelope performance.
3. Manufacturing Industry
The thermography testing procedure is critical for predictive maintenance in manufacturing, where equipment and machinery failures can lead to costly downtime. Using thermography, maintenance teams can identify abnormal heat signatures that indicate issues such as misalignments, bearing wear, and lubrication problems, allowing for targeted repairs and optimized equipment performance.
Example: Ford Motor Company uses thermography testing to monitor assembly line machinery and identify potential mechanical issues before they become critical. This proactive approach has resulted in lower maintenance costs and increased production efficiency by over 20%.
4. Oil and Gas Industry
Thermography testing plays a crucial role in Pipeline Inspection and Monitoring, storage tanks, and other critical equipment in the oil and gas sector. It helps detect issues like insulation degradation, Corrosion Under Insulation (CUI), and leaks, all of which are serious safety and environmental risks in this industry.
Example: Shell uses thermography to monitor offshore platforms, where corrosion and equipment failures pose high risks. By integrating thermography into its regular inspection regime, Shell has minimized downtime and reduced the risk of accidents, which is critical for both employee safety and environmental protection.
5. Aerospace Industry
In aerospace, thermography is employed in the inspection of aircraft components, including fuselage, wings, and engines. The ability to detect subsurface defects, bond integrity, and overheating components is crucial for ensuring aircraft safety and reliability.
Example: Boeing incorporates thermography testing as part of their aircraft maintenance protocol to inspect composite materials used in wings and fuselage. The early detection of subsurface defects and delamination issues helps prevent structural failures, significantly enhancing flight safety.
6. Automotive Industry
Automotive manufacturers use thermography to inspect engines, transmissions, and braking systems. Since excessive heat is often a sign of mechanical issues, identifying abnormal thermal patterns helps prevent part failures and ensures that vehicles meet safety and performance standards.
Example: Tesla employs thermography testing to inspect battery packs and identify thermal inconsistencies that could lead to potential malfunctions. This has been instrumental in ensuring the reliability and safety of their electric vehicles, minimizing risks related to overheating.
7. Medical and Veterinary Fields
Thermography is also increasingly used in medical and veterinary diagnostics. In medicine, it can assist in identifying conditions such as inflammation, infections, and circulation issues by capturing temperature variations on the body's surface.
Example: In veterinary applications, thermography is used to detect early signs of lameness in horses by identifying heat patterns that indicate inflammation or joint problems. This helps veterinarians provide targeted treatment to prevent further injuries.
Challenges and Limitations of Thermography Testing
One challenge of thermography testing is the need for specialized equipment and trained personnel to accurately interpret the results. While thermography testing is highly beneficial, it also comes with limitations.
1. Surface-Level Information
Thermography primarily detects surface temperature variations, which may not always reveal deeper subsurface issues. Additional testing methods might be required to confirm findings.
2. Dependence on Operator Skill
Accurate interpretation of thermographic data requires trained personnel, as incorrect analysis could lead to missed faults or false positives.
3. Environmental Factors
Wind, ambient temperature, and sunlight can affect the accuracy of thermographic images, necessitating careful control of conditions during inspection.
Key Takeaways
Thermography testing has become an indispensable tool in industries such as electrical utilities, construction, manufacturing, oil and gas, aerospace, automotive, and even healthcare.
By offering a non-invasive, cost-effective, and highly efficient method for identifying potential issues, thermography testing enhances safety, reduces downtime, and promotes long-term asset sustainability.
As industries continue to emphasize predictive maintenance and operational efficiency, thermography’s role in NDT will only grow, making it a valuable component of modern inspection and preventive maintenance programs.
