What are Welded Joints?

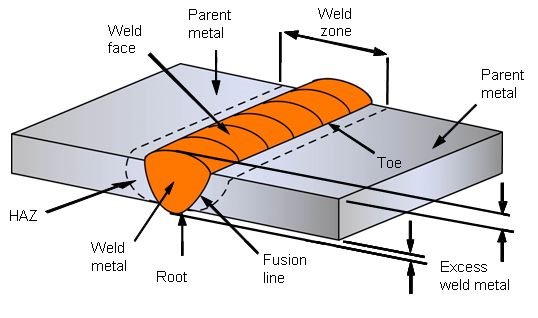

Welded joints are integral components in the realm of welding, forming the basis for joining various metal pieces to create a unified structure. These joints undergo rigorous inspection through NDT methods to ensure their quality and integrity. NDT methods are employed to detect any defects or imperfections in the welded joints, thereby guaranteeing their reliability and performance.
- Welded joints play a pivotal role in diverse welding applications, ranging from construction and manufacturing to automotive and aerospace industries.
- They are essential for securely joining metal components, facilitating structural stability and integrity in welded structures.
- Various welding techniques, such as butt welding, edge welding, and groove welding, are utilized to create different types of welded joints tailored to specific requirements.
- Welding symbols are employed to denote the specifications and characteristics of welded joints, providing essential information to welding professionals during fabrication.
- Welded joints can be categorized into various types based on their configuration, including butt joints, lap joints, tee joints, and edge joints, each serving distinct purposes in welding applications.
- The selection of a suitable weld joint type depends on factors such as material thickness, joint configuration, and welding technique.
- Welded joints can be fitted together to form V-groove or square butt joints, allowing for efficient welding processes and ensuring optimal joint strength and integrity.
Welded joints form the cornerstone of welding technology, offering versatility, strength, and reliability in diverse applications. Through meticulous inspection and adherence to welding standards, these joints contribute to the fabrication of robust and enduring structures across various industries.
Learn More About Welded Joints

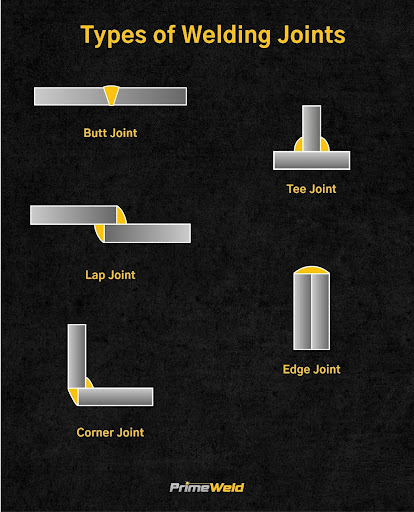

What are the Five Basic Weld Joints?
Let’s take a look at each different type of weld joint, describe what it is, how it might be utilized, and the possible pros and cons of each.
1. Butt Joint
Within the butt-joint classification, there are several variations on the design of butt joints based on the edge preparation of the two elements of the joints, including;
- Square
- Single bevel
- Double bevel
- Single J
- Double J
- Single V
- Double V
- Single U
- Double U
- Flanged
- Round edge (single flare and double flare)
Square Butt Joints

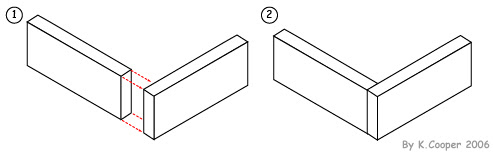

A square butt joint would commonly be used on thinner sections of a plate, tubing, angle, or channel, i.e., ¼” or less, and is not under tremendous amounts of stress. These joints require virtually no joint preparation to speak of; merely fit the pieces together with whatever gap suits the chosen welding process and requirements of the task involved and start welding.
Single Bevel Butt Joints

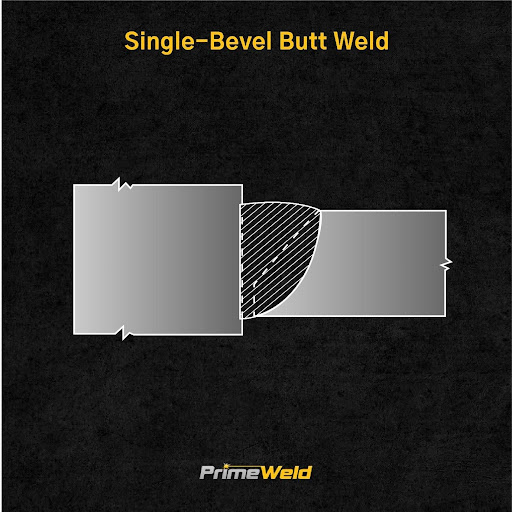

A single bevel is where only one of the pieces to be joined requires a bevel to achieve the desired weld penetration. This is commonly used when welding beams to columns in the structural steel construction industry. It would not be practical, or even possible, to bevel a column in the vertical position so the joint prep is performed on the beam only. A single bevel in this application allows the welder to weld the entire joint from one side. This is advantageous where access to both sides of the joint may not be possible. A backing bar may or may not be required, depending on the joint design.
Double Bevel Butt Joints
A double bevel, on the other hand, can be advantageous for this very reason; no backing material is required. The welder may simply weld from one side and then clean the root pass from the opposite side and achieve complete joint penetration this way. Double bevel weld joints are commonly used on pipes to join pipe sections and achieve complete joint penetration which is required for process piping. The beveling can be easily accomplished with an angle grinder for smaller pipes or a beveling machine, a commonly used tool in the pipe trades.
Single V Butt Joints
Single V butt joints are mainly used in joining pipes together where welding occurs from only one side, especially for pipes lower than 24” NPS. In this type of joint, the root pass can be welded with the GTAW process or by the SMAW process using cellulosic electrodes like E6010.
Double V Butt Joints

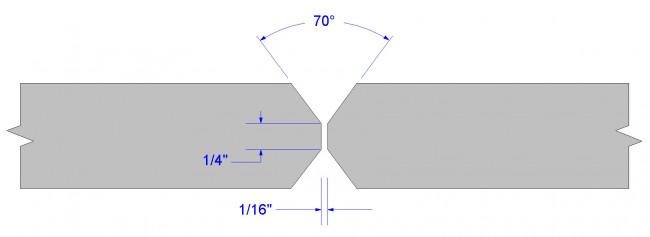

A double V bevel can also be used for joining heavy sections of plate or beams together where there is access to both sides of the joint. Again, the bevel can be achieved with flame cutting or grinding and is commonly used in field welding applications for this reason.
J Bevel and U Bevel Butt Joints
Both the J bevel and U bevel joint designs, both single and double bevel, are often found in very specific and unique applications within the welding industry. Both types of joint designations usually require machining of the parts to be joined and are therefore more difficult to perform on job sites. These particular joint designations might be used in joining heavy plate sections or pipes together where the welding criteria are critical Double U or J bevel can, in rare and specific cases, be used on the pipe as a way to counter any possible flow restrictions created by a weld penetrating into the pipe.
Single and Double J & U Butt Joints
Both types of joint designs are mainly used to join thick sections when joints are subjected to dynamic loads, like in the case of bridges. One of the disadvantages of these joint designs is the need for special tools for edge preparation to get the J or U groove butt on the other side. One advantage of these two joints is that they require lower quantities of welding electrodes to complete them, compared to single and double V groove joints.

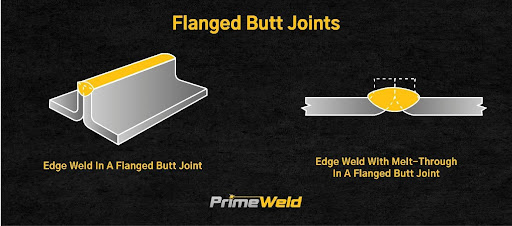

Flanged Butt Joints
This type of joint design is used in joining thin sections together and is usually used in HVAC duct fabrications where seal welds are required.
2. Tee Joint
The tee joint, or T joint, is a very commonly used joint in construction and manufacturing across the world. The T joint can be used to join all kinds of different sizes and shapes to achieve the desired end product. For example, attaching the mounting frame to the back of a loader bucket is accomplished with some variation of a T joint design.

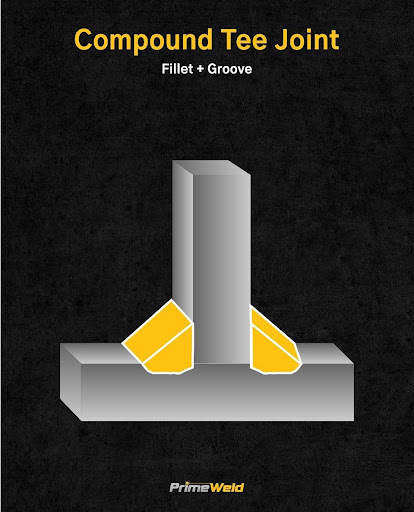

The T joint configuration could be welded with either a fillet weld or with groove welds, either partial joint penetration (PJP) or complete joint penetration (CJP), and maybe compound welds including groove and fillet welds like in the case of welding built-up sections.
3. Corner Joint

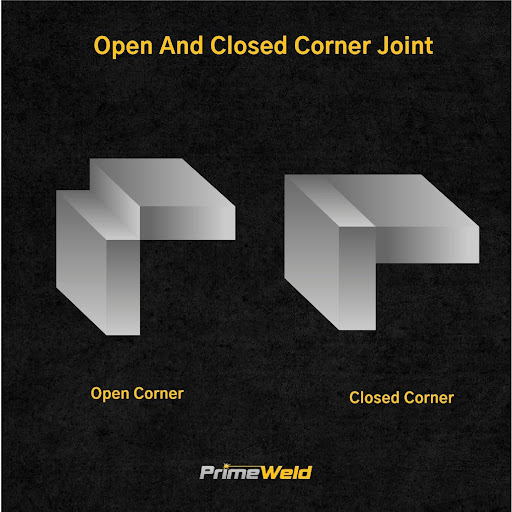

The corner joint is very simple and easy to implement and requires minimum prep. The pieces to be joined are brought together at approximately a right angle to each other and tacked into place. The corner joint may be aligned with the inside edges of each piece lined up or with one piece overlapping the other, depending on the joint design as shown in the image below. The corner joint could be welded with fillet welds or groove welds.
4. Lap Joint

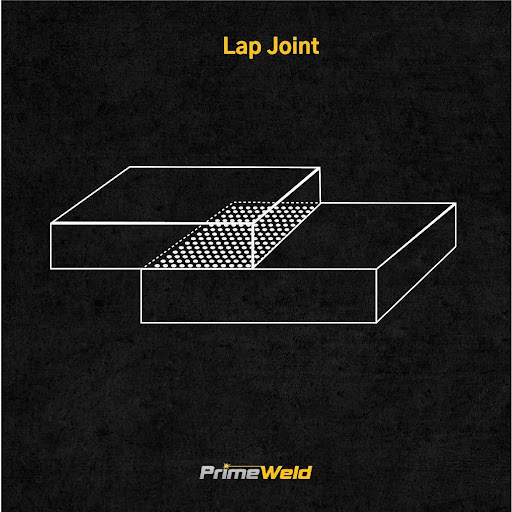

A lap joint is made by effectively laying one piece (typically a plate) over top of another. As with corner joints, a minimum of joint prep is required to achieve a proper lap joint. Make sure the material is clean and free of dirt and debris, bring it into firm contact, tack, and start welding. For welding a lap joint in a flat position, a 45-degree work angle is commonly used to ensure proper fusion between the overlapping pieces.
Lap joints are commonly used to weld sheet metal, plates, and thin materials, particularly in the automotive, construction, and metal fabrication industries. They are often used for joining materials of different thicknesses.
Many tank floors are built this way because the lap joint, with a specified amount of overlap, (typically 1½” to 2”) creates a strong joint that can be welded quickly with fillet welds at all connections. This type of joint design is very common in brazing, where the filler wire is melted and left to spread between the two laying sheets or pipes by what is called capillary action. This is used in the joining of copper pipes in HVAC systems.
5. Edge Joint
Lastly, the edge joint, which is made by joining pieces, usually plate and welding the outer edges. There are several different types of edge joints:
- U groove
- V groove
- J groove
- Corner flange
- Bevel groove
- Square groove
- Edge flange

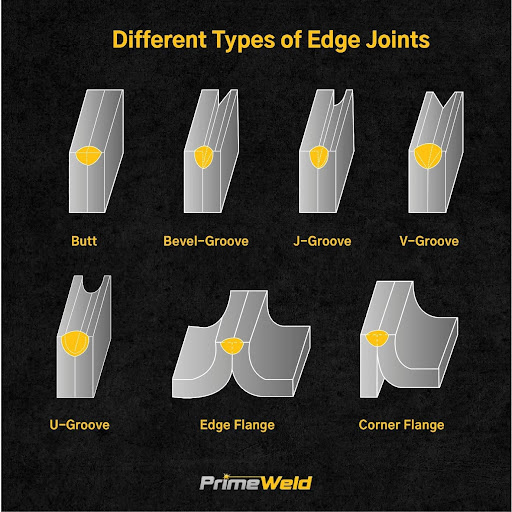

Edge joints may be made by any of the variations found in the illustration above depending on the thickness of the material to be joined and the desired strength of the part being fabricated. Edge joints are very commonly used in sheet metal applications. The edge flange and corner flange are ways to add structural rigidity when using thinner materials. The edge joint configuration would always be made with some variation of it in the groove weld.
Welded Joints Symbols

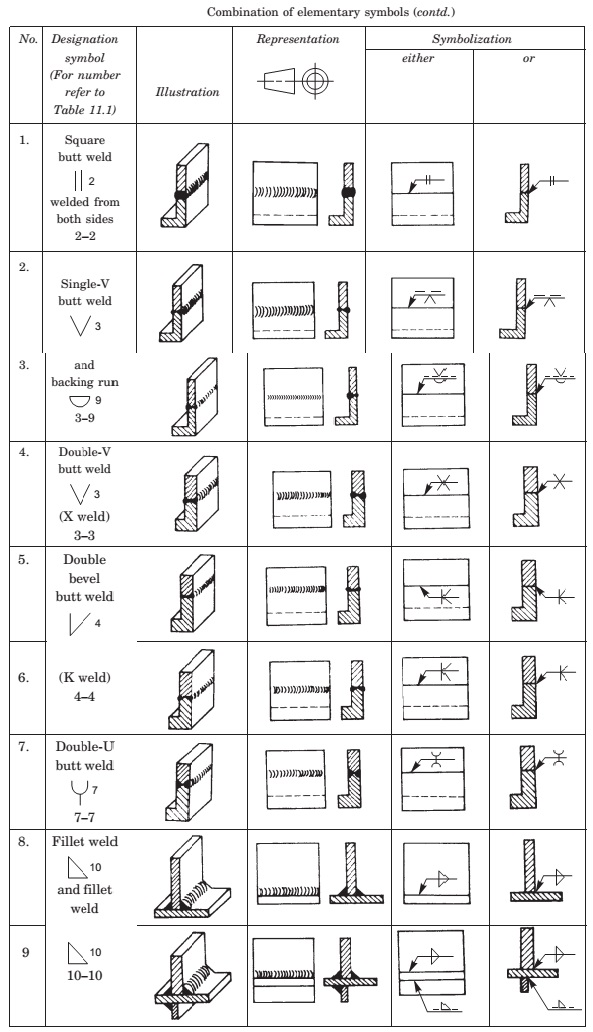

Welding Symbols are essential communication tools in the welding industry, providing vital information about the type and characteristics of welded joints. These symbols play a crucial role in conveying welding specifications, procedures, and requirements, facilitating seamless collaboration between designers, engineers, and welding professionals. Understanding welding symbols is paramount for ensuring the accuracy and integrity of weld joints in various welding applications.
- Welding symbols serve as visual representations of weld joints, depicting their configuration, dimensions, and welding processes.
- Butt weld joints, commonly represented by a straight line, signify the fusion of two metal pieces along their edges or ends, ensuring a seamless connection and maximum strength.
- Groove weld symbols, denoted by a V or U shape, indicate the preparation and welding of grooves in the metal surfaces to facilitate deep penetration and weld integrity.
- Bevel weld symbols, characterized by sloping lines, signify the preparation of beveled edges on the metal pieces to create angled joints, allowing for enhanced weld penetration and strength.
- Fillet weld symbols, represented by a triangular shape, signify the creation of fillet welds to join two surfaces at right angles, offering versatility and ease of application in welding projects.
- J-groove weld symbols, resembling a J shape, denote the preparation and welding of J-grooves in the metal surfaces, providing increased weld penetration and strength in specific welding applications.
- Welding symbols also indicate the welding position, such as flat, horizontal, vertical, or overhead, ensuring the correct orientation and alignment of weld joints during fabrication.
- Edge joint welding symbols, representing a joint formed by joining two pieces of metal edge to edge, convey the requirements for welding along the edges of metal components to create seamless connections.
- By interpreting welding symbols accurately, welding professionals can adhere to welding standards and specifications, ensuring the quality and integrity of weld joints in diverse welding projects.
Welding symbols play a vital role in conveying essential information about weld joints, welding processes, and welding positions in welding projects. Through clear and precise communication, these symbols facilitate the creation of robust and durable welded structures, meeting the requirements and standards of various industries.
Keep exploring the meaning of Welding Symbols!
Key Takeaways
- Mastering the different types of weld joints is crucial for ensuring structural integrity and quality in welding projects across various industries.
- Choosing the right type of joint impacts weld strength, efficiency, and overall project success, necessitating careful consideration of factors like material, joint configuration, and application requirements.
- Proficiency in welding joints is essential for welders' career advancement, enhancing their reputation for craftsmanship and professionalism, and contributing to project success and industry standards.
FAQs
1. The flat position lap joint is done much the same as which other weld?
A: The flat position lap joint is done much the same as the butt joint. Both types of welds involve joining two pieces of metal, but the key difference is in the orientation. In a lap joint, the edges of the pieces overlap, whereas in a butt joint, the edges are aligned and welded together.
2. Which Type of Welding Joint is the Most Commonly Used?
A: Again, it’s tough to give a simple, all-encompassing answer here. In pipeline construction, you will rarely see anything but full joint penetration butt welds being used. If you work in structural steel, you may see a lot of fillet welds, with only a few butt welds in column or beam splices. If you weld in the sheet metal market, you might see more corner and edge joints.
3. Which Type of Weld Joint is the Most Difficult to Weld?
A: The double-bevel butt weld-on pipe may arguably be the most difficult to make for several reasons. One, the weld is typically only accessible from the outside of the pipe. Secondly, the acceptance criteria in the welding codes that typically govern complete joint penetration welds on the pipe are very strict and do not allow much room for error. The welder must be able to produce a uniform weld, relatively free from defects from the outside of the pipe with consistency, often in less-than-ideal conditions.
4. What are some problems or Drawbacks to some more Commonly used Welding Joints?
A: When performing a butt weld on either pipe or a beam, alignment becomes a very important consideration. Most welding codes allow a MAXIMUM of ⅛” inch of misalignment, some pipe codes may only allow 1/16”. Too much misalignment can adversely affect the quality of the weld itself and the strength of the piece being welded. It's important to note when using a T joint to join radically dissimilar thicknesses of material together, for example, a piece of 5/16” plate to a 1” section of the plate, there can be stress created at the weld, usually at the toe of the thinner piece being joined. This can be mitigated by either increasing weld size to dissipate the stress over a larger surface area or, using a “repad” which is, in essence, a plate fit between the two pieces being joined in the T joint. This acts as a buffer and seems to dissipate the stress more evenly throughout the weldment.
5. Why are welded joints used?
A: Welded joints are used to join two or more metal pieces together to form a single, integrated structure. They are employed in various industries and applications to create strong, durable connections that can withstand mechanical loads, ensuring the integrity and functionality of the assembled components or structures.
