What is Ultrasonic Testing?

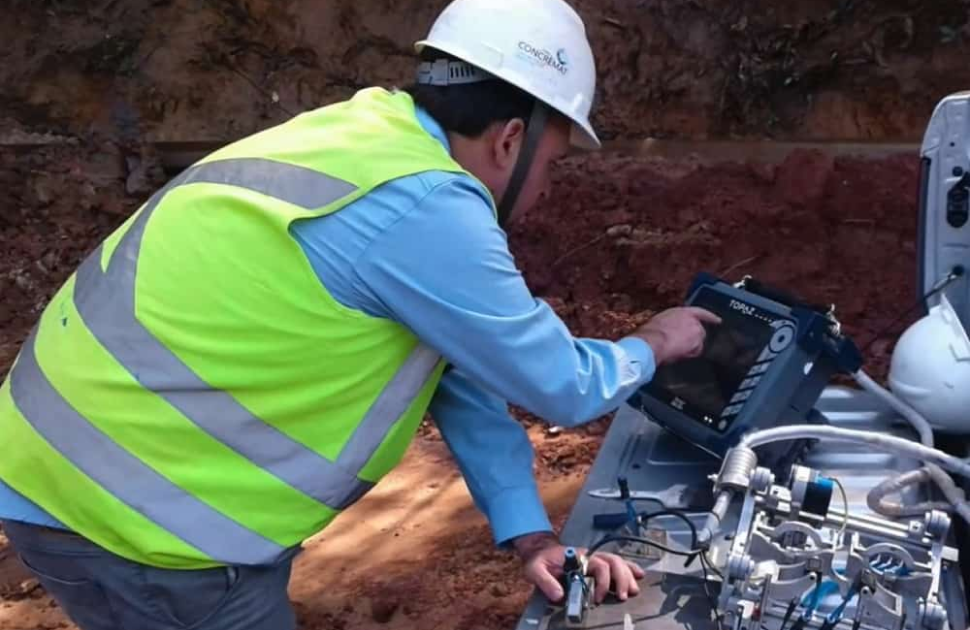

Ultrasonic Testing Performance

The UT test full form is Ultrasonic Testing. The ultrasonic non-destructive testing principle serves as an NDT procedure extensively employed in contemporary industries. Many ultrasonic testing advantages are highly beneficial approaches for detecting material discontinuities. Just like in healthcare and underwater navigation, ultrasonic testing plays a vital role in Ultrasonic Testing Equipment, ultrasonic sound testing, ultrasonic metal testing, ultrasonic inspection, and detecting anomalies, including those identified through the Rebound Hammer Test.

To inspect materials and identify faults or characterize the material, high-frequency noises, commonly known as ultrasonic waves, are sent through the object or material. In typical ultrasonic tests, short ultrasonic pulse waves with center frequencies ranging from 0.1 to 15 MHz, occasionally up to 50 MHz, are delivered into materials for characterization and internal fault identification. For instance, Ultrasonic Thickness Measurement is a frequently encountered application that checks the thickness of the test subject, such as monitoring Pipeline Corrosion.

Why is the Ultrasonic Test Important?

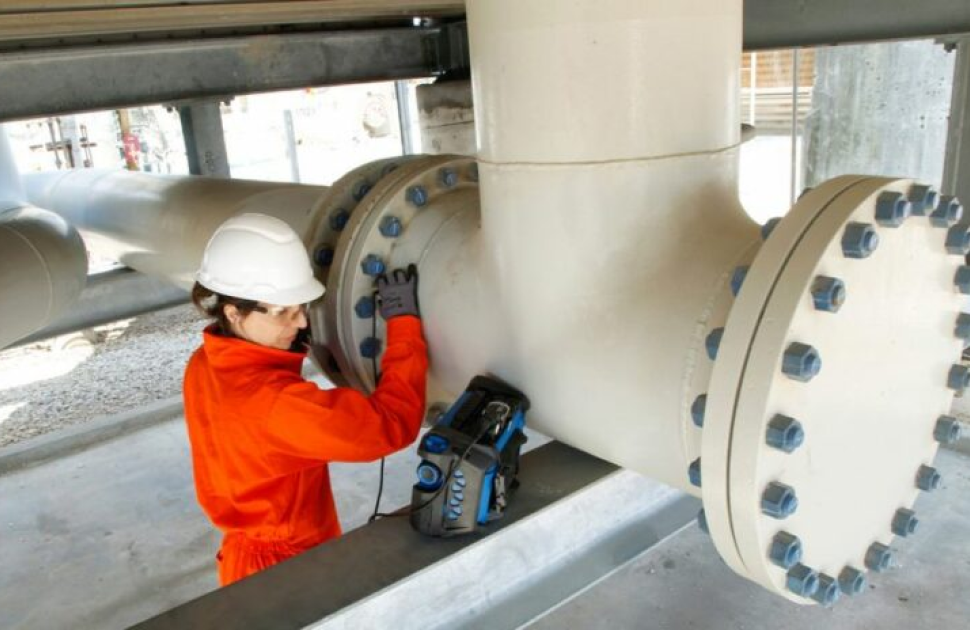

Ultrasonic Test Important

The ultrasonic test detects material discontinuities by using high-frequency sound waves that propagate through the material. There are several advantages of ultrasonic testing, that help with the sound portion. As it encounters a material with a different acoustical impedance, some of the sounds will reflect back. The sending device detects this reflected sound and displays it on the screen as an indication. By knowing the sound's velocity through the material and the time of transit, the NDT Technician can calculate the distance to the indicated material with a change in acoustic impedance.

To conduct Ultrasonic Testing, a technician introduces sound waves into the object through a piezoelectric crystal transducer. This crystal's role is to convert electrical current into sound waves. The two most common types of sound waves used in this process are compression waves, also known as longitudinal or straight beam waves, and shear waves, also known as transverse or angle beam waves. The ultrasonic testing principle is of utmost importance as it finds extensive applications.

NDT Technician

One such example is Ultrasonic Thickness Measurement, which is used to determine the thickness of an object, such as in assessing piping corrosion. Being an NDT technology, ultrasonic testing excels at detecting errors and flaws without causing any material damage using various approaches like ultrasonic sound tests and ultrasonic inspection. By regularly employing the ultrasonic testing principle to check for defects or corrosion growth, potential issues can be avoided. Early detection of damage can prevent machine parts, components, or entire structures from failing. Industries such as construction, aerospace, medical, automotive, metallurgy, and manufacturing widely embrace ultrasonic testing.


What are the Basic Principles of Ultrasonic Testing?


Ultrasonic Testing Principle

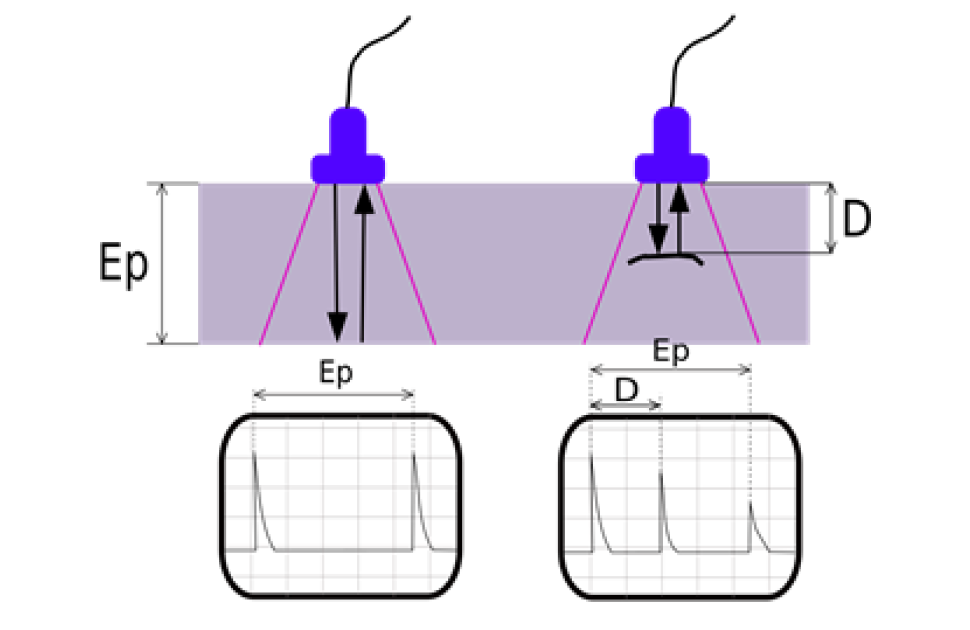

A sound wave is sent into a test substance by a probe, as depicted on the left. There are two signs, one from the probe's first pulse and the other from the back wall echo. As illustrated in the right-hand figure: A fault produces the third indication while also lowering the amplitude of the back wall indicator. The ratio D/Ep determines the depth of the flaw.

Ultrasonic Testing is based on a process known as ultrasonography, which is the transmission and reflection of sound waves. Ultrasonic waves are sent through the substance to be evaluated and then reflected into a receiver in this procedure. This receiver then processes the signals, which creates a three-dimensional representation of the materials, allowing any flaws to be spotted. The ultrasonic waveform is received in one of two ways. Reflection and attenuation techniques are the two Types of Ultrasonic Testing.

1. Reflection Method

In the reflection method, the transducer accomplishes both the sending and receiving of pulsed waves (pulse-echo mode), as the "sound" is reflected back to the instrument. Reflected ultrasound is generated at interfaces, such as the object's back wall or a flaw within the object. The diagnostic machine displays these data as a signal, with an amplitude representing the reflection's strength and distance representing the reflection's arrival time.

2. Attenuation Method

In the attenuation method, a transmitter delivers ultrasound through one surface while a separate receiver measures the quantity of sound reaching another surface after passing through the medium. Imperfections or other factors in the area between the transmitter and receiver cause less sound to be transmitted, indicating their presence. The use of a coupling medium improves the process efficiency by reducing ultrasonic wave energy losses due to the separation between the surfaces.

What is the Ultrasonic Testing Procedure?

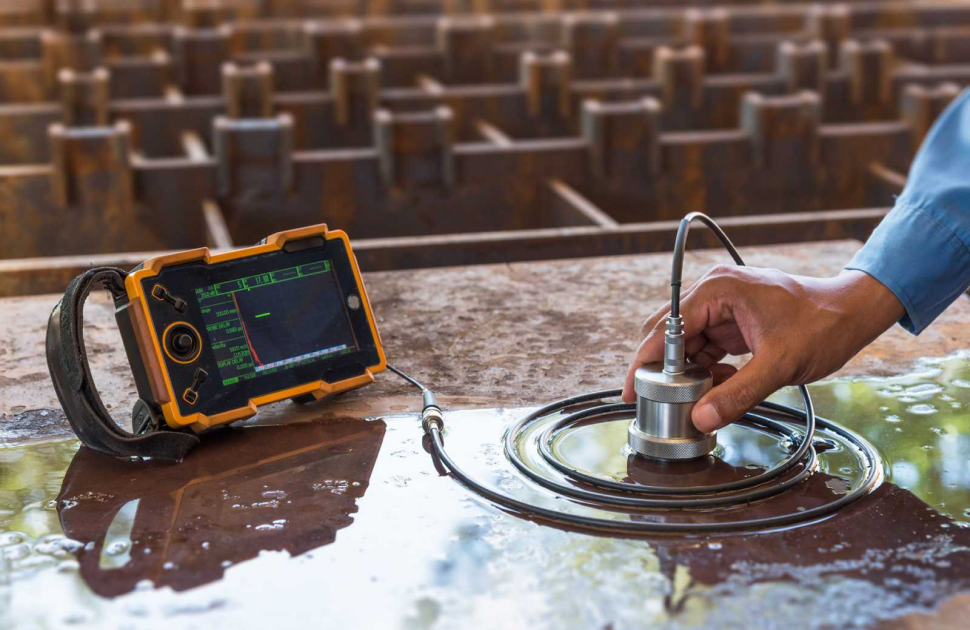

Ultrasonic Testing Procedure

Ultrasonic testing uses high-frequency sound energy to perform tests and measurements. It is employed to detect flaws and characterize materials using all major Ultrasonic Testing Equipment. A conventional ultrasonic testing detection system consists of three functional components: the Ultrasonic Transducer, receiver, and display devices.

When using an Electromagnetic Acoustic Transducer (EMAT) for ultrasonic testing, couplant is not required. In the event of a discontinuity, some energy reflects from the flawed surface, which may result from cracks in the wave path. The Ultrasonic Transducer converts the reflected wave signal into an electrical signal, displaying it on a screen. The procedure involves several essential steps to ensure accurate and reliable results. Here are the various steps.

1. Surface Preparation

Before conducting the NDT UT, the test surface must be adequately prepared. It involves cleaning the surface to remove any dirt, oil, or debris that could interfere with the inspection. A clean surface ensures better contact between the transducer and the test material, improving the accuracy of the results.

2. Calibration

Calibrating the UT Equipment is a crucial step to ensuring accurate defect detection. During calibration, the instrument is set to specific parameters, such as sound velocity and gain, using reference samples with known defects or features. This process establishes a baseline for the inspection, allowing the operator to interpret the results accurately.

3. Coupling Media

For contact UT, a coupling medium is used to enhance the transmission of ultrasonic waves between the Ultrasonic Transducer and the test material. Common coupling media include water, oil, or gel, depending on the application and material being inspected. The coupling medium eliminates air gaps that could hinder sound wave transmission, ensuring effective inspection.

4. Transducer Placement

The transducer, which emits and receives ultrasonic waves, is placed on the test surface with the help of the coupling medium. Proper transducer placement is crucial for obtaining reliable data. For contact UT, the transducer is placed directly on the surface, while for immersion UT, the test material is immersed in a liquid couplant.

Exploring the Potential of Single Transducer with Multiple Crystals at Different Directions for Ultrasonic Testing

5. Scanning Techniques

Scanning involves moving the transducer over the test surface in a systematic pattern to cover the entire area of interest. The operator may use different scanning NDT Techniques based on the object's geometry and the type of flaw being sought.

Common scanning techniques include:

Straight Beam Scanning: In straight-beam scanning, the transducer emits sound waves perpendicular to the test surface. This technique is used to detect defects oriented parallel to the surface, such as cracks or delaminations.

Angle Beam Scanning: Angle beam scanning involves tilting the transducer at a specific angle to the surface. This technique is used to detect defects at different depths within the material, making it suitable for Inspecting welds and other components with oblique defects.

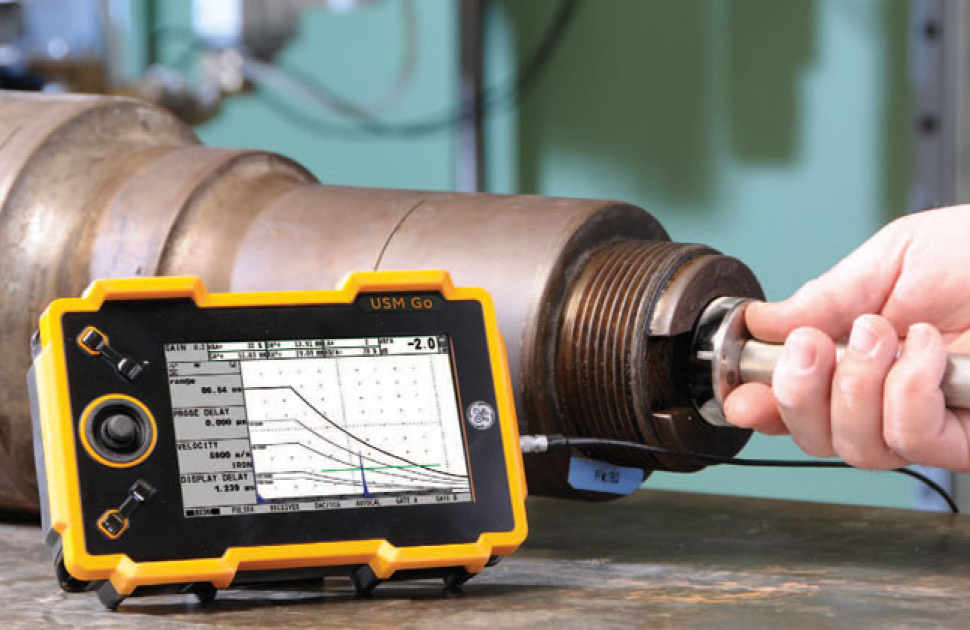

Ultrasonic Flaw Detector

6. Data Collection and Analysis

During scanning, the Ultrasonic Flaw Detector captures the data in the form of A-scans, which display the amplitude of the reflected waves over time. The operator analyses the A-scans to identify any indications of defects or irregularities within the test material. Proper analysis and interpretation are crucial for making informed decisions regarding the material's integrity.

Get Complete Information on the Ultrasonic Testing Procedure Here!

7. Reporting

After completing the inspection, a detailed report is generated, documenting the inspection results, any detected flaws, and their locations within the test material. This report serves as a valuable reference for future evaluations and maintenance decisions.


Sponsored

Guided Ultrasonics GUL's QSR1 for Corrosion under pipe support



Applications of Ultrasonic Testing


Ultrasonic testing is commonly used in industries to detect flaws or measure material thickness. It can also be utilised for weld inspection, corrosion detection, and quality control in manufacturing processes. Let's discuss a few applications below.

1. Ultrasonic Testing of Welds

Ultrasonic testing's ability to pinpoint the exact location of a weld discontinuity is one of its most helpful features. This form of testing necessitates a high level of operator training and competence and the development and implementation of appropriate testing protocols. This procedure can be performed on ferrous and nonferrous materials. It is typically appropriate for testing thicker parts accessible from only one side and can often reveal finer lines or plainer faults that Radiographic Testing may not be able to detect.

2. The Role of the Ultrasonic Flaw Detector

The Ultrasonic Flaw Detector is the heart of the UT equipment. It acts as a control unit, generating, sending, and receiving ultrasonic waves during the inspection process. The flaw detector provides the necessary functionality to adjust parameters, interpret results, and display the data in a user-friendly manner.

Components of an Ultrasonic Flaw Detector: The Ultrasonic Flaw Detector typically consists of the following components.

Pulser-Receivers: Pulser-receivers are essential components used in ultrasonic flaw detection equipment. These defects could include cracks, voids, inclusions, or other structural issues that may affect the integrity of the material.

Display Screen: The display screen shows the ultrasonic waveform, A-scan, and other relevant data captured during the inspection. It allows the operator to interpret and analyze the results effectively.

Controls and Keypad: The controls and keypad enable the operator to adjust various parameters such as gain, frequency, and time settings. These settings play a crucial role in tailoring the inspection according to the material and test requirements.

3. Transducers: Contact and Immersion

Transducers are devices that convert electrical energy into ultrasonic waves and vice versa. There are primarily two Types of Ultrasonic Transducers used in UT: contact and immersion transducers.

Contact Transducers: Contact transducers have a flat, smooth surface that requires direct contact with the test material. They are ideal for inspecting solid materials and structures with regular surfaces.

Immersion Transducers: Immersion transducers, as the name suggests, are placed in a liquid coupling that acts as a medium for transmitting ultrasonic waves into the test material. They are often used for inspecting large or irregularly shaped objects and offer a better signal-to-noise ratio.

Advantages of Ultrasonic Testing

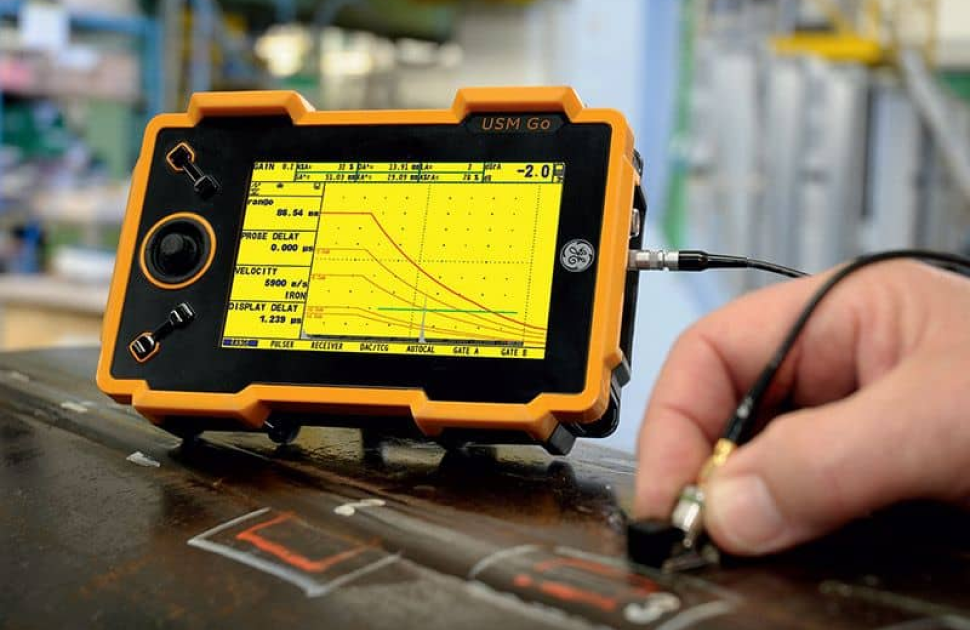

UT Equipment

Ultrasonic testing offers numerous advantages in the manufacturing environment. Here are some of the advantages of ultrasonic testing.

  • It can be used to create images using automated systems, as it is highly portable.
  • It has excellent sensitivity, allowing it to detect very minute defects.
  • It is sensitive to both surface and subsurface continuity.
  • When using the pulse-echo method, only one side access is necessary.
  • It poses no threat to individuals near the testing facility and does not affect nearby equipment or materials.
  • It can be used for flaw detection and thickness measurements.
  • Ultrasonic inspection's penetration depth outperforms other NDT approaches for fault detection and quantification.
  • Ultrasonic testing requires minimal preparation.
  • It accurately determines the position of the reflector and estimates the sizes and shapes of materials.
  • Results are immediate, allowing for on-the-spot evaluation.
  • It can estimate the structure of alloys containing components with varying acoustic characteristics.

Disadvantages of Ultrasonic Testing

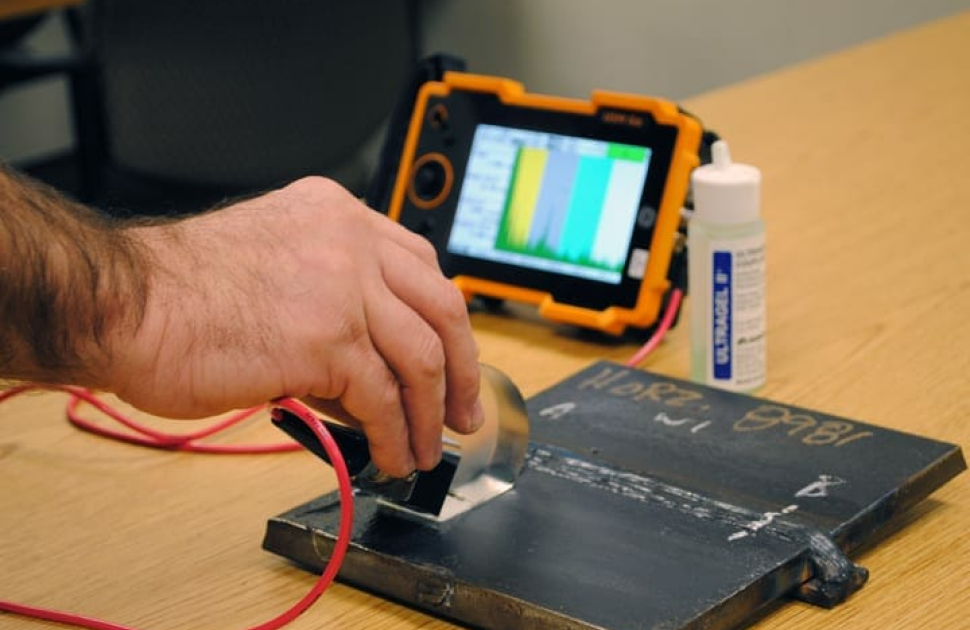

Advantages of Ultrasonic Testing

While ultrasonic testing has several advantages, it also comes with a few disadvantages as well. Here are a few disadvantages.

  • Inspection of small, rough, extremely thin, and irregularly shaped materials is difficult.
  • ultrasound testing requires an accessible surface, and the dead zone in ultrasonic testing may lead to overlooking near-surface defects in thin steel plates.
  • Ultrasonic testing is challenging to evaluate with cast iron and other coarse materials due to limited sound transmission and considerable signal noise.
  • Ultrasonic testing ndt can fail to detect linear faults oriented parallel to the sound beam, requiring more training and competence than other non-destructive procedures.
  • Reference standards are required for equipment calibration and fault characterization.
  • A coupling medium is frequently needed to enhance the passage of sound energy into the test specimen.
  • Ultrasonic testing is relatively more expensive than Other NDE Techniques.

Key Takeaways

  • The ultrasonic testing principle is a powerful and widely adopted non-destructive testing technique that provides valuable insights into the internal structure of materials.
  • The UT equipment, with its flaw detector and transducers, plays a central role in this process, allowing for accurate and reliable inspections.
  • By following a well-defined procedure, professionals can detect flaws and ensure the integrity of critical components across various industries. For more details head to OnestopNDT.

FAQs

1. What is an Ultrasonic Transducer?

A: Any device that transfers one form of energy into another is a transducer. Electrical energy is converted into mechanical vibrations (sound waves) using an Ultrasonic Transducer. Sound waves are converted back into electrical energy. They are typically compact, hand-held assemblies that come in various frequencies and styles to meet specific testing requirements.

2. What is an Ultrasonic thickness gauge?

A: An ultrasonic thickness gauge is a device that emits sound pulses in a test piece and measures the time interval between them with extreme precision. The gauge, which has been programmed with the sound velocity in the test material, uses that information along with the measured time interval to compute thickness using the simple formula [distance] = [velocity] multiplied by [time].
