Gamma Radiography Testing for Industrial Inspections

Table of Content

• Production of Gamma Rays
• What is Gamma Radiography Testing?
• Working Principle of Gamma Ray Testing
• Gamma Ray Testing Procedure and Equipment
• Testing and Recording Materials as Films using the Camera
• Advancements and Innovations
• Key Takeaways
• FAQs

Gamma radiography testing has its roots in the early 20th century, shortly after the discovery of gamma rays by French physicist Henri Becquerel in 1896. Over the years, gamma radiography has evolved to become a staple in industrial inspection, despite the inherent risks associated with radiation exposure.

Despite the potential hazards of radiation exposure, advancements in radiographic equipment and safety protocols have made gamma radiography a reliable and indispensable tool in industrial inspection. The ability to identify defects in an accurate and non-invasive manner ensures the longevity and safety of infrastructure, safeguarding both economic investments and human lives.

By understanding the intricacies of this technology, we can appreciate its significance in maintaining the highest standards of quality and safety in various industries.

Production of Gamma Rays

Gamma radiography is valuable for ensuring pipeline integrity, quality control in manufacturing, and overall defect detection in critical components. By capturing detailed images of the internal structure of materials, gamma radiography allows for the precise identification of flaws such as cracks, voids, and inclusions, which could lead to catastrophic failures if left undetected.

What are Gamma Rays?

Gamma rays are a form of electromagnetic radiation with extremely high energy, produced by the decay of radioactive isotopes. Gamma rays are produced by unstable nuclei called radioisotopes. A radioisotope does not have enough binding energy to hold the nucleus together. These isotopes, such as Cobalt-60 and Iridium-192, are commonly used in Industrial Radiography Testing. The spontaneous breakdown of an atomic nucleus resulting in the release of energy and matter is known as radioactive decay.

Most of the radioactive material used in Industrial Radiography is artificially produced. This radioactive material is produced by subjecting stable material to a source of neutrons in a special nuclear reactor. This process is called activation. Gamma rays are emitted by these isotopes continuously, necessitating stringent safety measures and specialised equipment to manage their use. This is unlike X-rays, which can be generated on demand by machines.

Radioisotopes used for Gamma Radiography are encapsulated to prevent leakage of the material. The radioactive “capsule” is attached to a cable to form what is often called a “pigtail.” The pigtail has a special connector at the other end that attaches to a drive cable.

What is Gamma Radiography Testing?

Gamma radiography testing is a non-destructive testing technique utilising gamma rays to inspect and evaluate the internal structure of materials and components. This method is widely used in aerospace, oil and gas, construction, and manufacturing to detect defects and ensure the integrity and safety of critical infrastructure.

Gamma-ray inspections work on the principle of differential absorption of gamma radiation by the material being tested. Gamma Rays, a form of high-energy electromagnetic radiation, are emitted from a radioactive source and directed towards the object under inspection.

As these rays penetrate the material, they are absorbed to varying degrees depending on the density and thickness of the material. This produces a radiographic image that reveals internal features and any potential defects.

Working Principle of Gamma Ray Testing

The working principle of gamma radiation in gamma-ray testing hinges on the fundamental properties of gamma rays. Gamma rays have a very short wavelength and high energy, which allows them to penetrate deeply into materials. When gamma rays pass through a material, they lose energy and intensity due to scattering and absorption processes. The extent of this attenuation is influenced by the material's composition and structural integrity.

Gamma radiography testing is highly effective for inspecting thick and dense materials, where other NDT techniques may fall short. For instance, it is extensively used in Pipeline Inspections to Detect Weld Defects, Corrosion, and other anomalies that could compromise pipeline integrity.

In the aerospace industry, gamma ray testing is employed to inspect critical components such as turbine blades and structural elements, ensuring they meet stringent safety and performance standards. The advantages of gamma radiography testing include its ability to provide a permanent record of the inspection in the form of radiographic images, which can be analysed and stored for future reference.

This technique also allows for the inspection of complex geometries and large objects without disassembly, making it a cost-effective and efficient solution for industrial inspection. However, the use of gamma radiography also comes with significant safety considerations due to the potential hazards of radiation exposure. Strict protocols and shielding are necessary to protect personnel and the environment from radiation. Advances in gamma radiography equipment and safety measures continue to enhance the reliability and safety of this critical inspection method.

Gamma radiography testing is a powerful NDT technique that leverages the penetrating power of gamma rays to inspect the internal structure of materials. Its ability to detect defects and ensure the integrity of critical components makes it an indispensable tool in various industries, contributing to the safety and reliability of infrastructure and products.

Gamma Ray Testing Procedure and Equipment

In a typical gamma radiography setup, the object to be inspected is placed between a gamma ray source and a recording medium, such as a radiographic film or a digital detector. The gamma rays travel through the object and reach the recording medium, creating an image based on the varying degrees of exposure.

Areas with defects, such as cracks, voids, or inclusions, will absorb gamma rays differently than the surrounding material, leading to noticeable contrasts on the radiograph. The gamma radiography equipment is designed to optimise the inspection process and ensure accurate results.

Key components include the gamma-ray source, usually a sealed capsule containing a radioisotope such as Cobalt-60 or Iridium-192, and the recording medium. The gamma-ray source continuously emits radiation, and the amount of exposure can be controlled by adjusting the distance between the source, exposure time and the object.

Gamma Ray Testing Procedure

The gamma-ray inspection procedure is as follows:

1. Preparation and Safety Measures:

Ensure all personnel involved in gamma-ray inspections are properly trained and equipped with appropriate protective gear. Conduct a thorough safety assessment of the testing site, adhering to NDT standards and regulations to minimise radiation exposure risks. Establish controlled areas with clear signage and barriers to restrict access to authorised personnel.

2. Selection of Gamma Ray Source:

Choose an appropriate gamma-ray source, such as Cobalt-60 or Iridium-192, based on the material thickness and inspection requirements. Verify the activity level and calibration of the gamma-ray source to ensure it meets the specifications for the intended inspection.

3. Setup of Gamma Radiography Equipment:

Position the gamma radiography camera at the designated location, ensuring it is securely mounted and stable. Connect the gamma radiography camera to the guide tube, ensuring all connections are secure to prevent radiation leaks. Place the recording medium, such as radiographic film or a digital detector, on the opposite side of the test subject.

4. Object Positioning and Alignment:

Align the object to be inspected between the gamma-ray source and the recording medium, ensuring the area of interest is directly in the path of the gamma rays. Use alignment tools and markings to maintain consistent positioning for accurate defect detection.

5. Calculation of Exposure Time:

Utilise a gamma radiography exposure calculator to determine the appropriate exposure time based on the material type, thickness, and gamma-ray source activity. Adjust the exposure settings on the gamma radiography equipment to match the calculated exposure time for optimal image quality.

6. Conducting the Exposure:

Activate the gamma-ray source by extending it from the gamma radiography camera into the guide tube, directing the gamma rays towards the object. Maintain a safe distance and monitor the exposure process from a protected location to ensure compliance with safety protocols. After the predetermined exposure time, retract the gamma-ray source into the gamma radiography camera, safely securing it.

7. Image Development and Analysis:

Use appropriate techniques to reveal the object’s internal structure to develop the radiographic film or process the digital images. Examine the radiographic images for any signs of defects, such as cracks, voids, or inclusions, ensuring a thorough analysis for quality control.

8. Documentation and Reporting:

Document the findings of the gamma-ray testing procedure, including the details of the inspections, equipment used, and any defects detected. Prepare a comprehensive report summarising the results. Highlight areas of concern and recommend any necessary corrective actions.

9. Post-Inspection Procedures:

Conduct a final safety check to ensure all gamma radiography equipment is properly stored and any radiation sources are securely locked. Remove all protective barriers and signage and debrief the inspection team on the results and any follow-up actions required.

10. Review and Quality Control:

Review the gamma-ray testing process to identify any areas for improvement and ensure adherence to NDT standards. Implement any necessary changes to enhance the accuracy, efficiency, and safety of future industrial inspections, contributing to the integrity and reliability of the pipeline or structure under examination.

These steps provide a comprehensive overview of the gamma-ray testing procedure, ensuring high standards of quality control, defect detection, and pipeline integrity in industrial inspections.

Gamma Ray Testing Equipment

Gamma Ray Testing Equipment includes the following:

1. Gamma Ray Sources:

• Radioisotopes: Gamma-ray inspections utilise radioisotopes such as Cobalt-60 and Iridium-192, selected for their appropriate half-lives and energy levels to suit different material thicknesses.
• Source Capsules: These isotopes are encapsulated in secure, leak-proof containers to prevent radiation leakage and ensure safe handling during gamma ray testing.

2. Gamma Radiography Camera:

• Housing and Shielding: The gamma radiography camera is designed with heavy shielding, usually lead or tungsten, to protect operators from radiation exposure.
• Source Holder: The radioactive source is securely held inside the camera and can be precisely controlled during gamma-ray inspections.
• Guide Tube Connection: The camera includes a connection point for a guide tube, which directs the gamma rays to the target area during radiographic testing.

3. Guide Tubes:

• Flexible Conduits: Guide tubes are flexible yet robust, allowing for the precise positioning of the gamma-ray source relative to the test subject.
• Radiation Protection: These tubes are often lined with lead to minimise radiation exposure to the surrounding environment during gamma ray testing.

4. Drive Mechanisms:

• Manual and Remote Systems: The gamma radiography equipment includes drive mechanisms that allow the radiographer to extend and safely retract the radioactive source. These can be manually operated or remotely controlled for enhanced safety.
• Precision Control: The drive mechanisms ensure precise control over the source movement, for accurate defect detection in Radiography Testing.

5. Recording Media:

• Radiographic Film: Traditional gamma ray inspections often use Radiographic Film, which captures the image created by the differential absorption of gamma rays in the inspected material.
• Digital Detectors: Modern gamma radiography equipment includes digital detectors that provide immediate results and higher image resolution, improving quality control and defect detection.

6. Gamma Radiography Exposure Calculator:

• Exposure Time Calculation: This essential tool helps determine the correct exposure time based on the gamma-ray source, material thickness, and required image quality, ensuring compliance with NDT standards.
• Optimisation of Results: By accurately calculating the exposure time, the gamma radiography exposure calculator ensures optimal image quality and efficient use of radiographic equipment.

7. Radiographic Film Processing Equipment:

• Automatic Processors: For traditional film-based gamma ray testing, automatic processors develop the film, ensuring consistent and high-quality results.
• Darkroom Facilities: A darkroom is required for manual film processing, equipped with safelights, developing tanks, and fixing solutions to produce clear radiographs.

8. Digital Image Processing Software:

• Enhanced Analysis: Digital radiographic equipment often includes advanced software for processing and analysing images, allowing for detailed inspections and accurate defect detection.
• Archiving and Reporting: These systems facilitate easy storage, retrieval, and reporting of inspection data, contributing to pipeline integrity and quality control.

9. Safety and Monitoring Devices:

• Radiation Dosimeters: Personnel involved in gamma-ray testing wear dosimeters to monitor their radiation exposure, ensuring it remains within safe limits per NDT standards.
• Area Monitors: These devices continuously monitor radiation levels in the inspection area, providing real-time alerts if levels exceed safe thresholds.

10. Shielding and Barriers:

• Portable Shielding: Additional shielding materials, such as lead blankets or mobile barriers, protect personnel and the environment from radiation during gamma-ray inspections.
• Controlled Access Zones: Establishing restricted zones with physical barriers ensures that only authorised personnel are present during gamma radiography procedures.

These gamma radiography equipment components ensure the effectiveness and safety of gamma-ray inspections, providing reliable NDT Solutions for Industrial Inspection, pipeline integrity, and quality control.

Testing and Recording Materials as Films using the Camera

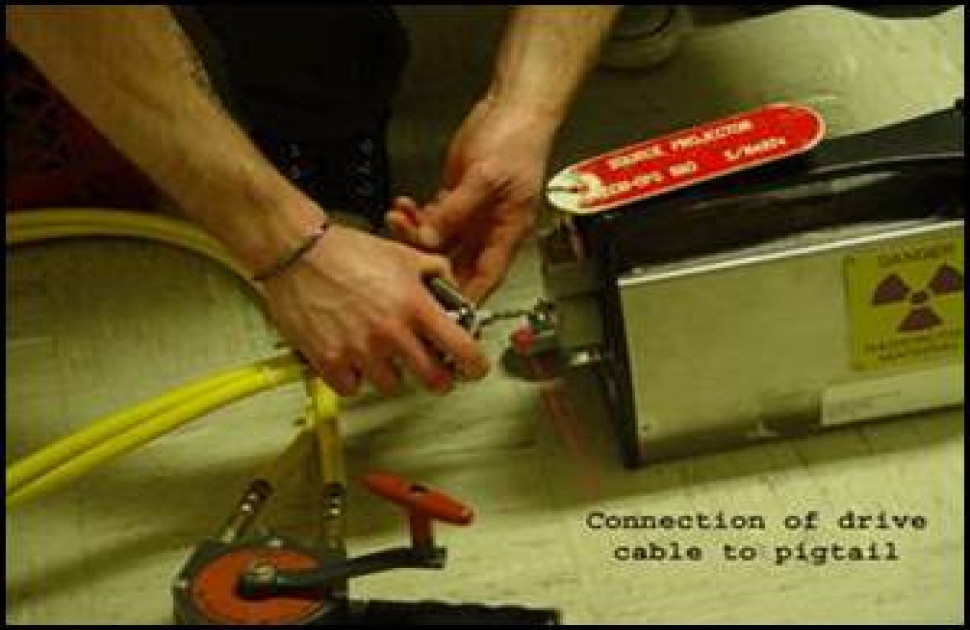

A “drive cable” is connected to the other end of the camera. This cable, controlled by the radiographer, is used to force the radioactive material into the guide tube where the Gamma Rays will pass through the specimen and expose the recording device.

Advancements and Innovations

Advancements and innovations in Gamma Ray Inspection Technology include, but are not limited to the following:

1. Digital Radiography:

• High-Resolution Detectors: Digital Radiography equipment now features high-resolution detectors, providing clearer and more detailed images for defect detection and quality control.
• Immediate Results: Digital systems allow instant image acquisition and analysis, significantly reducing inspection times and enhancing pipeline integrity assessments during industrial inspection.

2. Computed Radiography (CR):

• Phosphor Imaging Plates: Computed Radiography utilises phosphor imaging plates instead of traditional film, which can be reused, reducing material costs and waste.
• Enhanced Image Processing: Advanced software algorithms improve image quality and defect detection capabilities, aiding in more accurate and reliable industrial inspections.

3. Automated Defect Recognition (ADR):

• Machine Learning Algorithms: ADR systems incorporate machine learning to automatically identify and classify defects, increasing efficiency and reducing the potential for human error in gamma radiography testing.
• Consistent Quality Control: These systems provide consistent and repeatable results, ensuring higher quality control standards and adherence to NDT standards.

4. Advanced Gamma Ray Sources:

• High-Activity Sources: Higher-activity gamma-ray sources allow for shorter exposure times and improved image clarity in gamma-ray inspections.
• Miniaturised Sources: Innovations in source miniaturisation enable more precise targeting of small or complex geometries, enhancing defect detection in intricate components.

5. Portable Radiographic Equipment:

• Lightweight Cameras: Modern gamma radiography cameras are more lightweight and portable, facilitating easier transportation and deployment in remote or challenging environments.
• Integrated Shielding: Enhanced shielding materials reduce radiation exposure while maintaining camera portability, for field-based pipeline integrity assessments.

6. Remote Operation and Robotics:

• Robotic Systems: Robots equipped with gamma radiographic equipment can perform in hazardous or hard-to-reach areas, improving safety and accessibility.
• Remote Control: Remote operation capabilities allow technicians to conduct gamma ray testing from a safe distance, reducing radiation exposure and increasing operational flexibility.

7. Advanced Image Analysis Software:

• 3D Imaging and Tomography: Software advancements enable the creation of 3D images from radiographic data, providing a more comprehensive view of internal structures and aiding in detailed defect detection.
• Enhanced Image Contrast: Improved image processing algorithms enhance contrast and highlight subtle defects, facilitating more accurate evaluations during quality control.

8. Integration with Other NDT Techniques:

• Multimodal Inspections: Combining gamma radiography with other NDT techniques, such as ultrasonic testing or magnetic particle inspection, provides a more holistic material integrity assessment.
• Data Fusion: Integrating data from multiple NDT Methods enhances defect detection accuracy and reliability, supporting robust industrial inspection protocols.

9. Regulatory and Standards Development:

• Updated NDT Standards: Ongoing updates to NDT standards reflect the latest advancements and best practices in gamma radiography testing, ensuring procedures remain safe and effective.
• Certification and Training Programs: Enhanced Training and Certification Programs keep professionals up-to-date with the latest technologies and methods, maintaining high industry standards.

10. Eco-Friendly Innovations:

• Low-Emission Sources: Gamma-ray sources, with reduced environmental impact and safer disposal methods, align with increasing regulatory demands for sustainable practices.
• Digital Transition: Shifting from film-based to digital radiography reduces chemical waste and environmental footprint, supporting eco-friendly industrial inspection processes.

These advancements and innovations in gamma radiography testing represent significant progress in the field, offering professionals more efficient, accurate, and safe tools for ensuring pipeline integrity, quality control, and defect detection in industrial inspections.

Key Takeaways

• Gamma radiography testing uses high-energy gamma rays to penetrate materials, revealing internal defects without causing damage.
• From digital radiography to automated defect recognition, advancements in gamma radiography technology enhance accuracy, efficiency, and inspection safety.
• Lightweight gamma radiography cameras and integrated shielding materials enhance portability and field deployment, crucial for remote or challenging environments. Robotics and remote-control capabilities allow for safe and flexible inspection, reducing radiation exposure and increasing accessibility.

FAQs

1. What are the risks associated with gamma radiography testing?

A: Gamma radiography involves exposure to ionising radiation, which can be harmful if proper safety protocols are not followed. However, stringent safety measures and shielding are implemented to minimise risks to personnel and the environment.

2. How does gamma radiography compare to other NDT techniques like Ultrasonic Testing?

A: Gamma radiography excels in inspecting thick and dense materials where other methods may be less effective. It provides detailed images of internal structures and is particularly useful for detecting defects such as weld cracks, corrosion, and material inclusions.
