Non-destructive testing (NDT) is a vital component of quality assurance and safety in various industries, such as aerospace, manufacturing, and construction.
NDT inspections generate vast amounts of data that need to be analyzed and interpreted to make informed decisions about the integrity of materials, components, and structures.
To process and manage this data, specialized software programs are used. Here are some commonly used software programs in NDT.
1. Ultrasonic Testing Software:

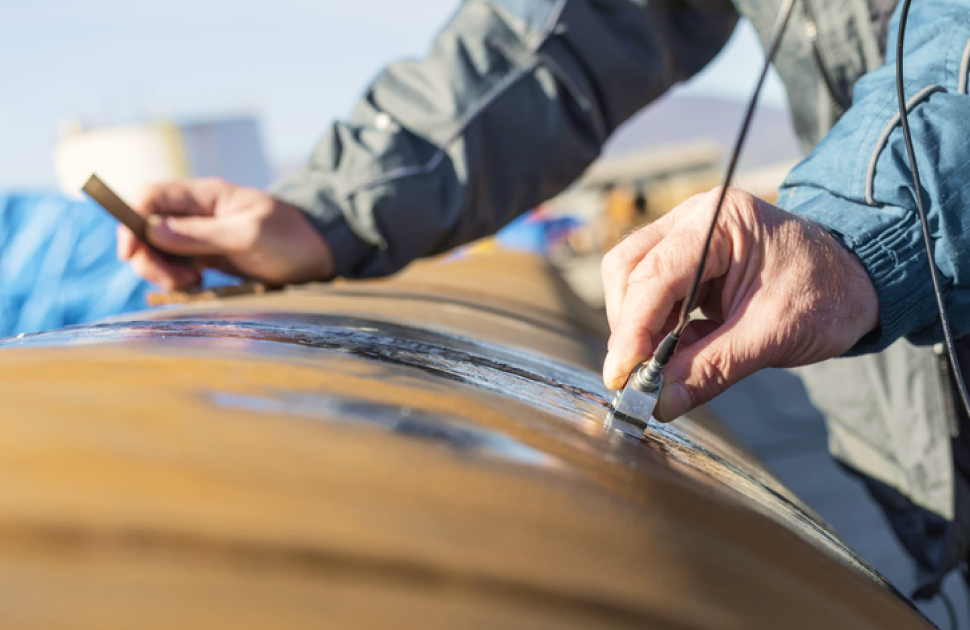

Ultrasonic Testing is widely used to inspect the internal structure of materials and components, such as welds, castings, and forgings.
Ultrasonic testing software processes and interprets ultrasonic inspection data, such as echo signals, to create images that show the internal features of a material or component.
This software includes advanced algorithms that enable the detection and sizing of flaws, such as cracks, voids, and inclusions.
2. Radiographic Testing Software:
Radiographic Testing is used to inspect the internal structure of materials and components using X-rays or gamma rays.
Radiographic testing software processes and interprets radiographic images to enhance image quality, measure dimensions, and detect flaws.
This software includes features such as image enhancement, measurement, and defect analysis, making it an essential tool for NDT Inspectors.
3. Eddy Current Testing Software:
Eddy Current Testing is used to inspect conductive materials for defects such as cracks, corrosion, and other discontinuities.
Eddy current testing software processes and interprets eddy current inspection data, which is generated by inducing a magnetic field in the material and measuring the resulting electrical currents.
This software includes advanced signal analysis, defect detection, and measurement features, making it a powerful tool for NDT Inspections.
4. Magnetic Particle Testing Software:
Magnetic Particle Testing is used to detect surface-breaking flaws in ferromagnetic materials such as iron and steel.
Magnetic particle testing software processes and interprets magnetic particle inspection data, which is generated by magnetizing the material and applying ferromagnetic particles to the surface.
This software includes advanced image enhancement, measurement, and defect analysis features, making it a critical tool for NDT Inspections.
5. Liquid penetrant testing software:
Liquid Penetrant Testing is used to detect surface-breaking flaws in non-porous materials such as ceramics, plastics, and metals.
Liquid penetrant testing software processes and interprets penetrant inspection data, which is generated by applying a liquid penetrant to the surface and removing the excess penetrant before applying a developer.
This software includes advanced image enhancement, measurement, and defect analysis features, making it an essential tool for NDT Inspectors.
6. Data Management Software:
Data management software is used to manage and store inspection data generated by various NDT Methods.
This software enables inspectors to generate reports, keep track of inspection history, and analyze trends over time.
This software is critical for quality assurance and is used to ensure that inspection data is accurate, reliable, and accessible.
7. Remote Inspection Software:
Remote Inspection software is used to remotely control and monitor inspection equipment, such as robotic crawlers, drones, or crawlers.
Remote inspection software provides remote access to inspection data, enabling inspectors to conduct inspections in hazardous or hard-to-reach areas without putting personnel at risk.
This software is critical for safety and efficiency in NDT Inspections.
In conclusion, NDT Software plays a crucial role in NDT inspections, allowing inspectors to analyze and interpret data, manage and store inspection results, and provide insights into the integrity of materials, components, and structures.
NDT software programs vary depending on the specific NDT Method, industry, and application, and it's essential to choose software that is compatible with the equipment being used and that meets the specific needs of the inspection or project.
Choosing the right software can significantly improve the efficiency and accuracy of NDT inspections, ensuring that the highest standards of quality assurance and safety are maintained.
