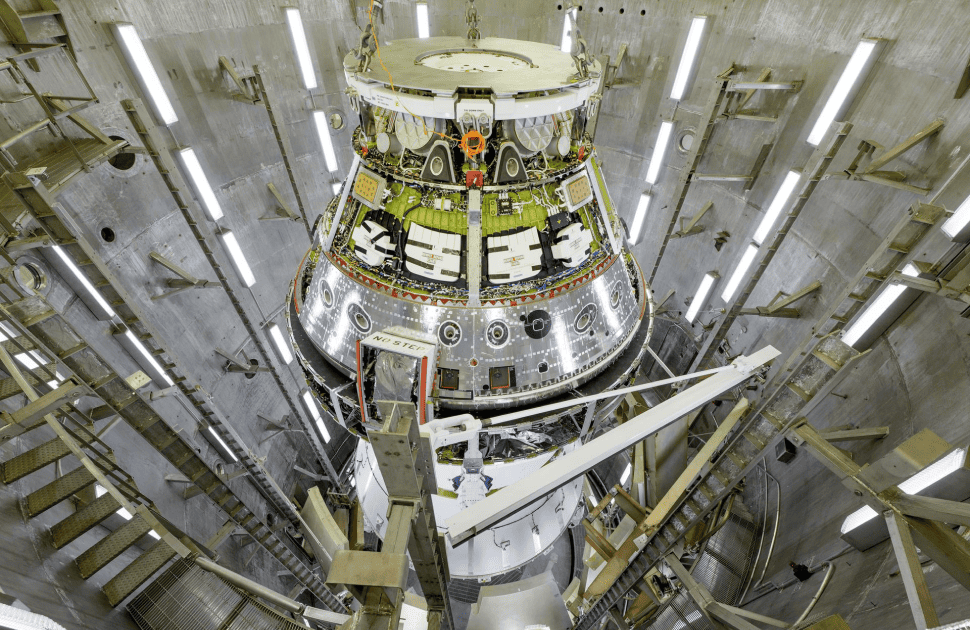

NASA has pinpointed the technical cause behind the unexpected char loss across the heat shield of the Artemis I Orion spacecraft, using an extensive investigation that incorporated a combination of nondestructive testing (NDT) techniques. This investigation marks a critical step toward ensuring the safety and effectiveness of NASA’s heat shield technology for future Artemis missions, particularly those that will carry astronauts to the Moon and beyond.
The issue emerged during the uncrewed Artemis I mission when Orion returned from its flight around the Moon. Engineers discovered that gases produced inside the heat shield’s ablative outer layer, made of Avcoat material, were unable to vent as expected. This gas buildup led to internal pressure, resulting in cracking and the shedding of some of the charred material from the heat shield. While this issue did not affect the spacecraft’s ability to return safely to Earth, it highlighted a potential risk for future crewed missions.
NASA’s investigation team employed a range of NDT methods to understand the cause of this issue. Ground-penetrating radar (GPR), ultrasonic testing, and backscatter X-ray techniques were all used to examine the heat shield’s structural integrity without damaging the material. These nondestructive methods allowed engineers to analyze the heat shield thoroughly, validating their findings and ensuring a safer, more efficient resolution.
Root Cause Unveiled through Nondestructive Testing
The investigative team, working with the data obtained from onboard sensors and extensive post-flight analysis, confirmed that the issue occurred when gas pressure inside the heat shield's Avcoat material built up during the spacecraft’s atmospheric entry. The use of skip guidance entry, a maneuver that extends the range of the spacecraft after reentry, caused the heat shield to experience lower heating rates than anticipated. This slower heating delayed the expected formation of permeable char, causing gas to accumulate, ultimately leading to cracking and char loss.
Using NDT methods, NASA engineers replicated the entry conditions in laboratory settings, confirming that the permeability of the Avcoat material played a crucial role in this issue. Areas of the heat shield that had the required permeability were able to vent gases properly, preventing any damage. In contrast, areas where permeability was insufficient were more susceptible to gas buildup, which led to the observed cracking and shedding of charred material.
Nondestructive Testing as a Key Tool for Future Space Missions
The use of NDT techniques in this investigation highlights the growing importance of these methods in the space industry. NASA’s engineers are now equipped with a better understanding of how the heat shield material behaves under specific conditions, paving the way for more reliable spacecraft designs in the future. These insights will guide the production of the Artemis II heat shield, which will undergo operational changes to address the issues uncovered during Artemis I, without compromising crew safety.
By ensuring that the heat shield’s material can withstand the stresses of reentry, NASA is continuing to enhance the safety of its crewed missions. The investigation also emphasizes the role of NDT in space exploration, as these methods provide a way to inspect and assess spacecraft materials and components without compromising their integrity.
Continued Improvement through Groundbreaking Testing
NASA’s commitment to using NDT to refine its spacecraft technology is evident in the ongoing testing and analysis. In addition to using NDT to examine the Avcoat material’s permeability and structural behavior, NASA has also undertaken extensive ground testing to simulate the actual flight conditions. These tests, which include arc jet facilities and hypersonic wind tunnels, provide critical data for improving heat shield performance.
The integration of NDT into the Artemis program represents a new standard in ensuring the safety and longevity of space exploration technologies. As the Artemis program advances towards its crewed missions, the lessons learned from the Artemis I heat shield investigation and the continued use of nondestructive testing will play a vital role in shaping the future of space travel.
Looking Ahead
NASA is currently implementing improvements to the heat shield for future Artemis missions, including enhanced permeability for the Avcoat material. These modifications are aimed at ensuring that similar issues do not arise during crewed flights. By leveraging insights gained through NDT methods and ground testing, NASA is better equipped to deliver safe, reliable spacecraft for the upcoming Moon missions and beyond.
This investigation serves as a testament to the importance of nondestructive testing in ensuring the safety and functionality of critical aerospace materials. As the space industry continues to push the boundaries of exploration, NDT will remain a key component in the development of next-generation spacecraft technologies. component in the development of next-generation spacecraft technologies.
